iM2275 Storm Case

Interior: 14.1 × 13.2 × 9.9"

Exterior: 15.3 × 15.5 × 10.2"

made in usa

Colours

The Pelican store is currently down for maintenance

Pelican™ Storm Case™

Give your gear extra space. With a deeper lid, the iM2275 is the first case in our Pelican™ Storm Case™ line that gives you more vertical space to work with for your equipment. This case gives you the freedom to configure multiple 4K cameras, diagnostic circuit readers, or a drone with accessories.

  • Two Press & Pull Latches
  • Lightweight Strong HPX® Resin
  • Watertight, crushproof, and dustproof
  • Double-layered, Soft-grip Handle
  • Vortex™ Valve
  • Two Padlockable Hasps
  • Powerful Hinges
  • Guaranteed for life

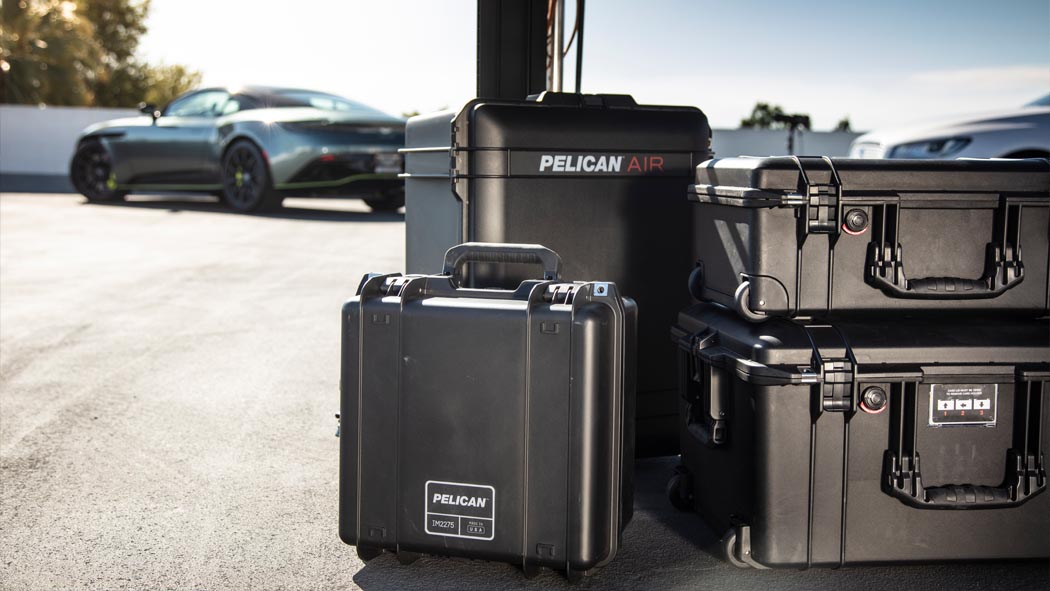

pelican im2275 drone camera set case

Dimensions

Interior (L×W×D)
14.12 x 13.19 x 9.90 in
(35.9 x 33.5 x 25.1 cm)
Exterior (L×W×D)
15.25 x 15.50 x 10.22 in
(38.7 x 39.4 x 26 cm)

Measurements

Lid Depth
3.20" (8.1 cm)
Bottom Depth
6.30" (16 cm)
Total Depth
9.5" (24.1 cm)
Int Volume
1.07 ft³ (0.03 m³)

Weights

Weight With Foam
10.25 lbs (4.6 kg)
Weight Empty
8.00 lbs (3.6 kg)
Buoyancy
68.80 lbs (31.2 kg)

Materials

Body Material
Injection Molded HPX™ high performance resin
Latch Material
Valox - Polybutylene Terephthalate (PBT)
Latch (Alt) Material
Xenoy - Polyester/Polycarbonate blend
O-Ring Material
EPDM
Pins Material
Stainless Steel
Pins (Alt) Material
Aluminum
Foam Material
1.3/1.35 polyester
Purge Body Material
Valox - Polybutylene Terephthalate (PBT)
Purge Body (Alt) Material
Xenoy - Polyester/Polycarbonate blend
Purge Vent Material
Gortex membrane

Temperatures

Minimum Temperature
-20° F (-29 ° C)
Maximum Temperature
140° F (60 ° C)

Approvals

Certifications
IP67
