OVERVIEW
Pelican™ Protector Case™
Sensitive equipment needs protection, and since 1976 the answer has been the Pelican™ Protector Case. These cases are designed rugged, and travel the harshest environments on earth. Against the extreme cold of the arctic or the heat of battle, Pelican cases have survived.
Made in the USA, these tough cases are designed with an automatic purge valve, that equalizes air pressure, a watertight silicone O-ring lid, over-molded rubber handles and stainless steel hardware.
Configurations:
1660 Protector Case
The With Padded Dividers (1664) configuration includes:
- 1660 Protector Case
- Padded Dividers
1660 Protector Case
The No Foam (1660NF) configuration includes:
- 1660 Protector Case
1660 Protector Case
The With Foam (1660WF) configuration includes:
- 1660 Protector Case

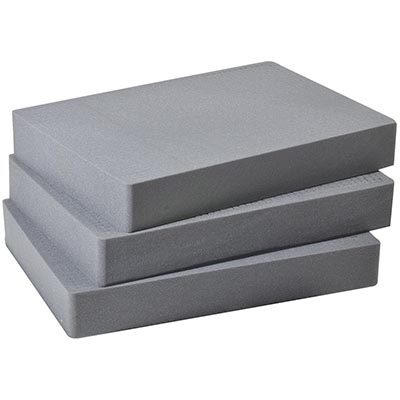

- Foam Layers
- Foam Layer 1 (Lid) - 3.00" (7.6 cm) Convolute
- Foam Layer 2 (Base) - 4.25" (10.8 cm) Pick N Pluck (.63" x .63" squares)
- Foam Layer 3 (Base) - 4.25" (10.8 cm) Pick N Pluck (.63" x .63" squares)
- Foam Layer 4 (Base) - 4.25" (10.8 cm) Pick N Pluck (.63" x .63" squares)
- Foam Layer 5 (Base) - 1.00" (2.5 cm) Solid
- Large 2-person fold down handles
- 4 strong polyurethane wheels with stainless steel bearings
- Watertight, crushproof, and dustproof
- Open cell core with solid wall design - strong, light weight
- 3 level Pick N Pluck™ with convoluted lid foam
- Retractable extension trolley handle
- Easy open double-throw latches
- Stainless steel hardware and padlock protectors
- Automatic pressure equalization valve - balances interior pressure, keeps water out
- O-ring seal
- Personalized nameplate service available
YOU MAY ALSO LIKE
SPECS
DIMENSIONS
Interior (L×W×D)
28.20 x 19.66 x 17.63 in
(71.6 x 49.9 x 44.8 cm)
(71.6 x 49.9 x 44.8 cm)
Exterior (L×W×D)
31.59 x 22.99 x 19.48 in
(80.2 x 58.4 x 49.5 cm)
(80.2 x 58.4 x 49.5 cm)
MEASUREMENTS
Lid Depth
3.50" (8.9 cm)
Bottom Depth
14.14" (35.9 cm)
Total Depth
17.64" (44.8 cm)
Int Volume
5.66 ft³ (0.16 m³)
Padlock Hole Diameter
5/16" (8 mm)
WEIGHTS
Weight With Foam
42.16 lbs (19.1 kg)
Weight Empty
34.16 lbs (15.5 kg)
Buoyancy
365.00 lbs (165.6 kg)
MATERIALS
Body Material
Polypropylene
Latch Material
ABS
O-Ring Material
Polymer
Pins Material
Stainless Steel
Foam Material
1.3 lb Polyurethane
Purge Body Material
ABS
Purge Vent Material
3 Micron Hydrophobic Non-Woven
TEMPERATURES
Minimum Temperature
-40° F (-40 ° C)
Maximum Temperature
210° F (99 ° C)
Others
Wheels
4
Extendable Handle
yes
Approvals
Certifications
IP67 / Def Stan 81-41
