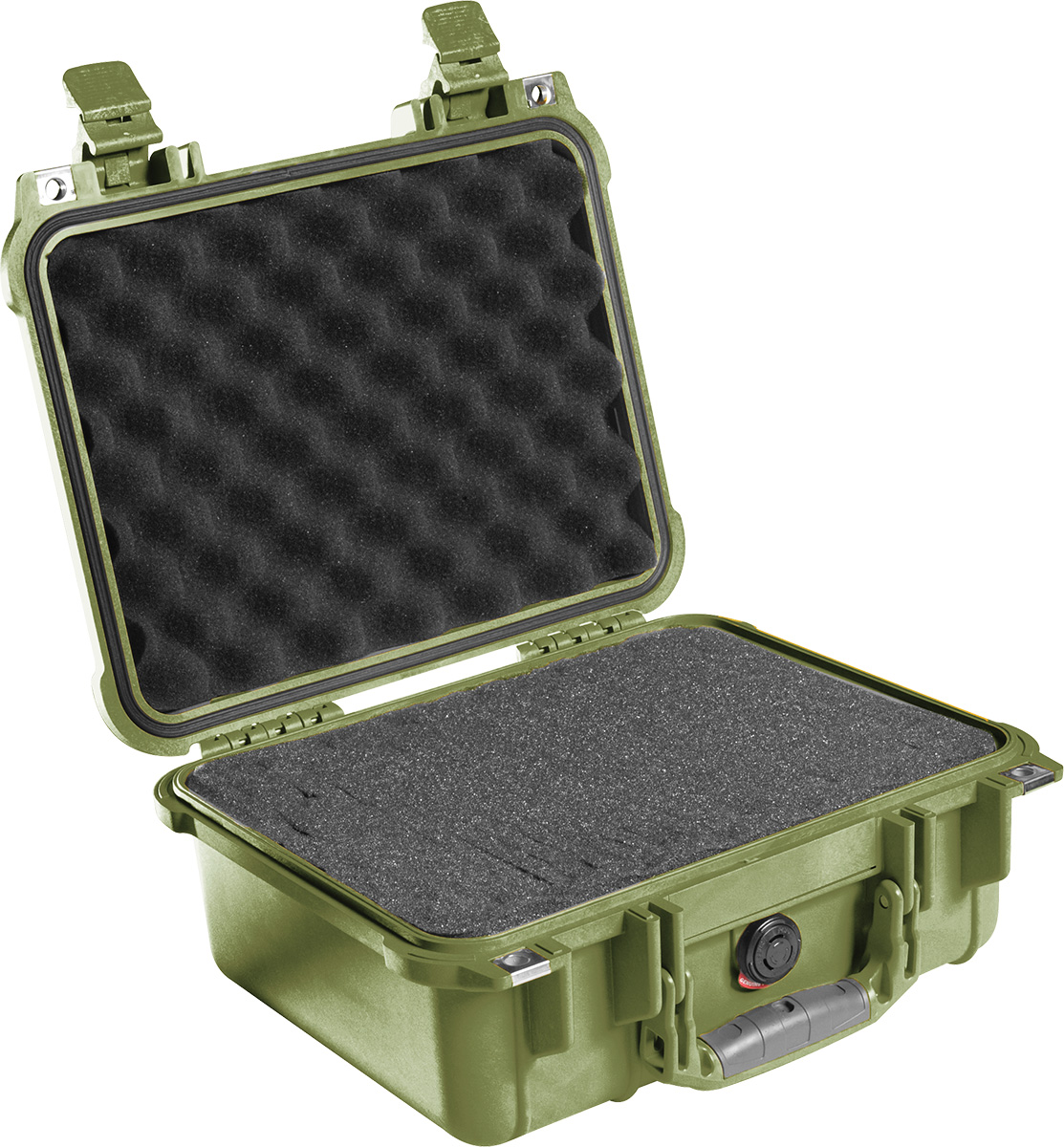

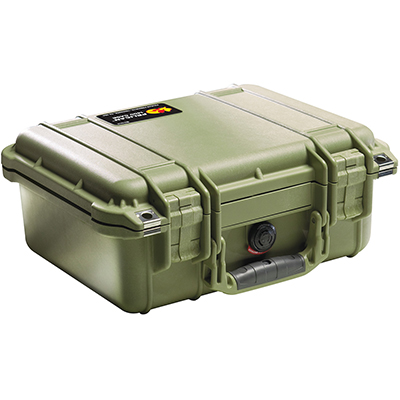

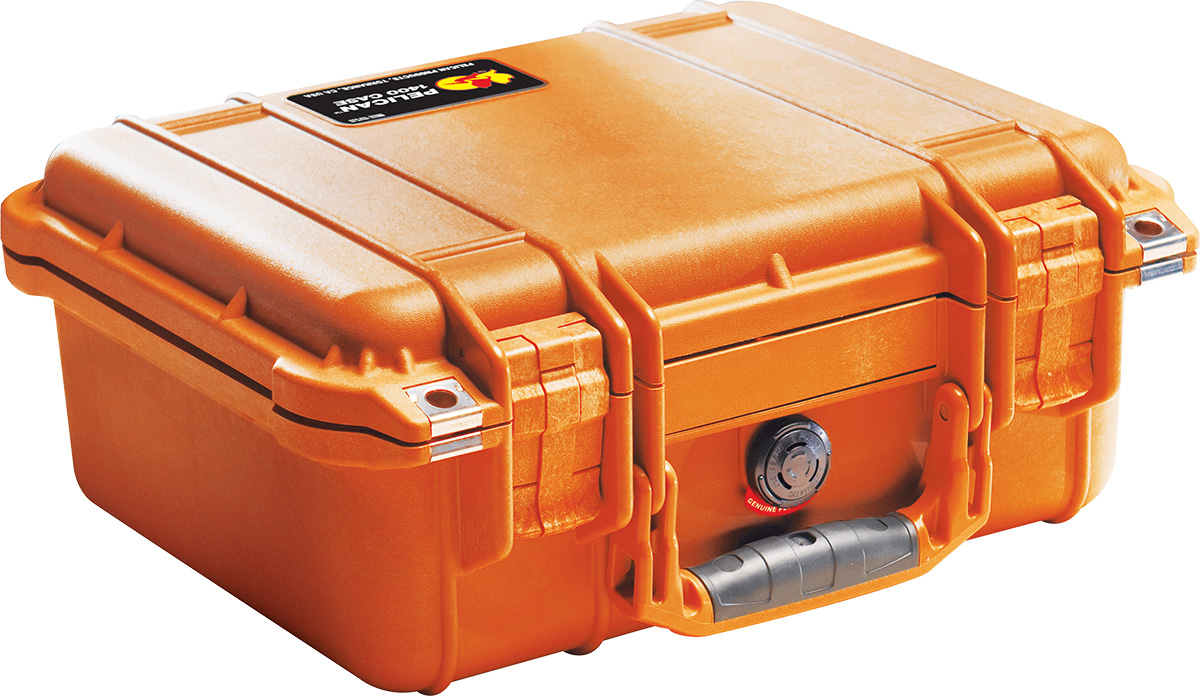

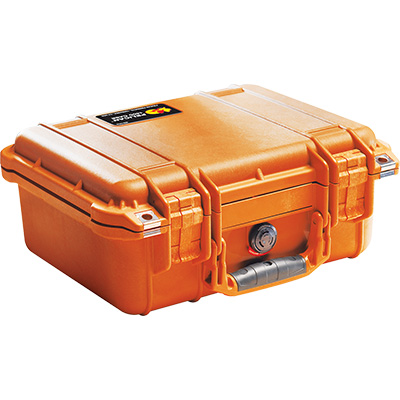

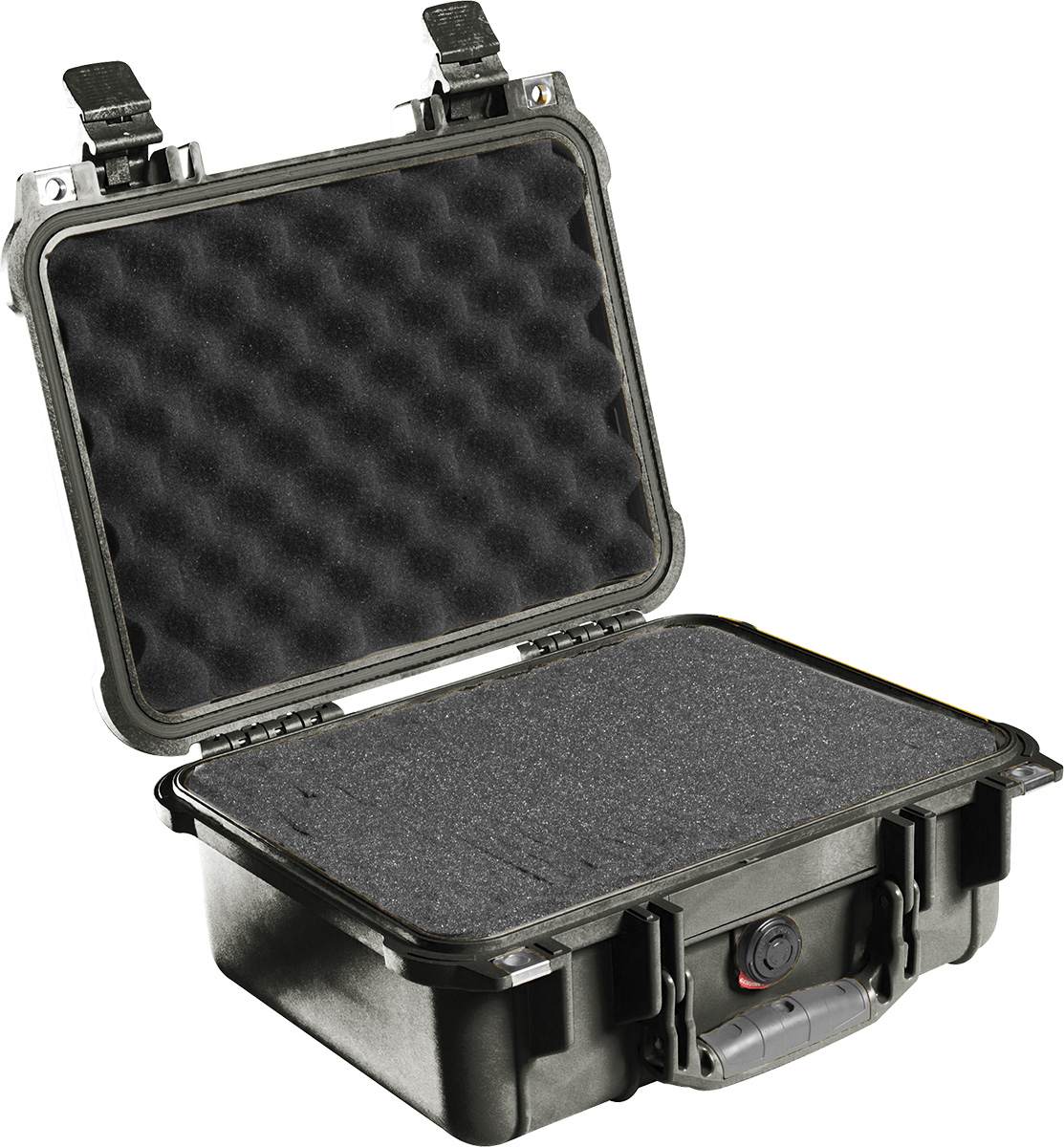

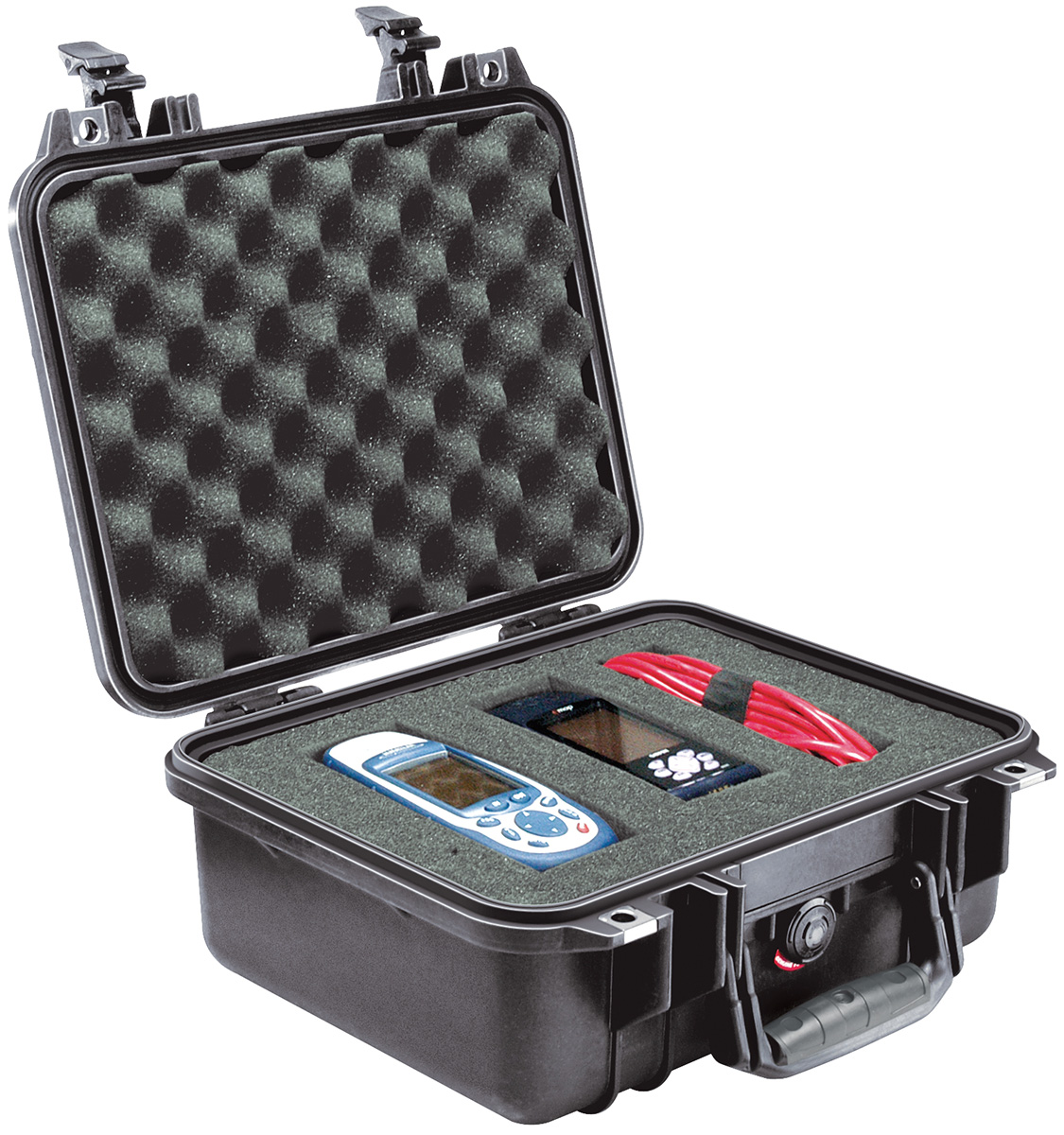

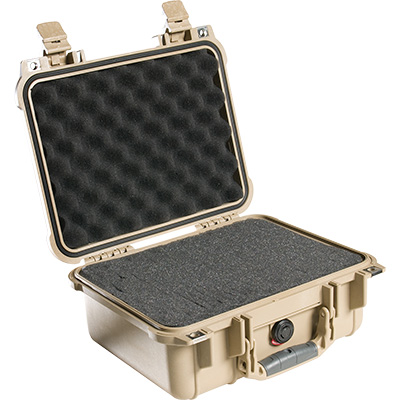

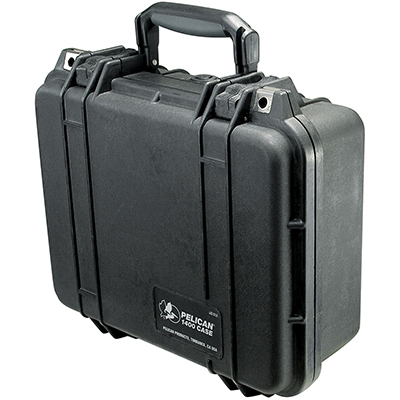

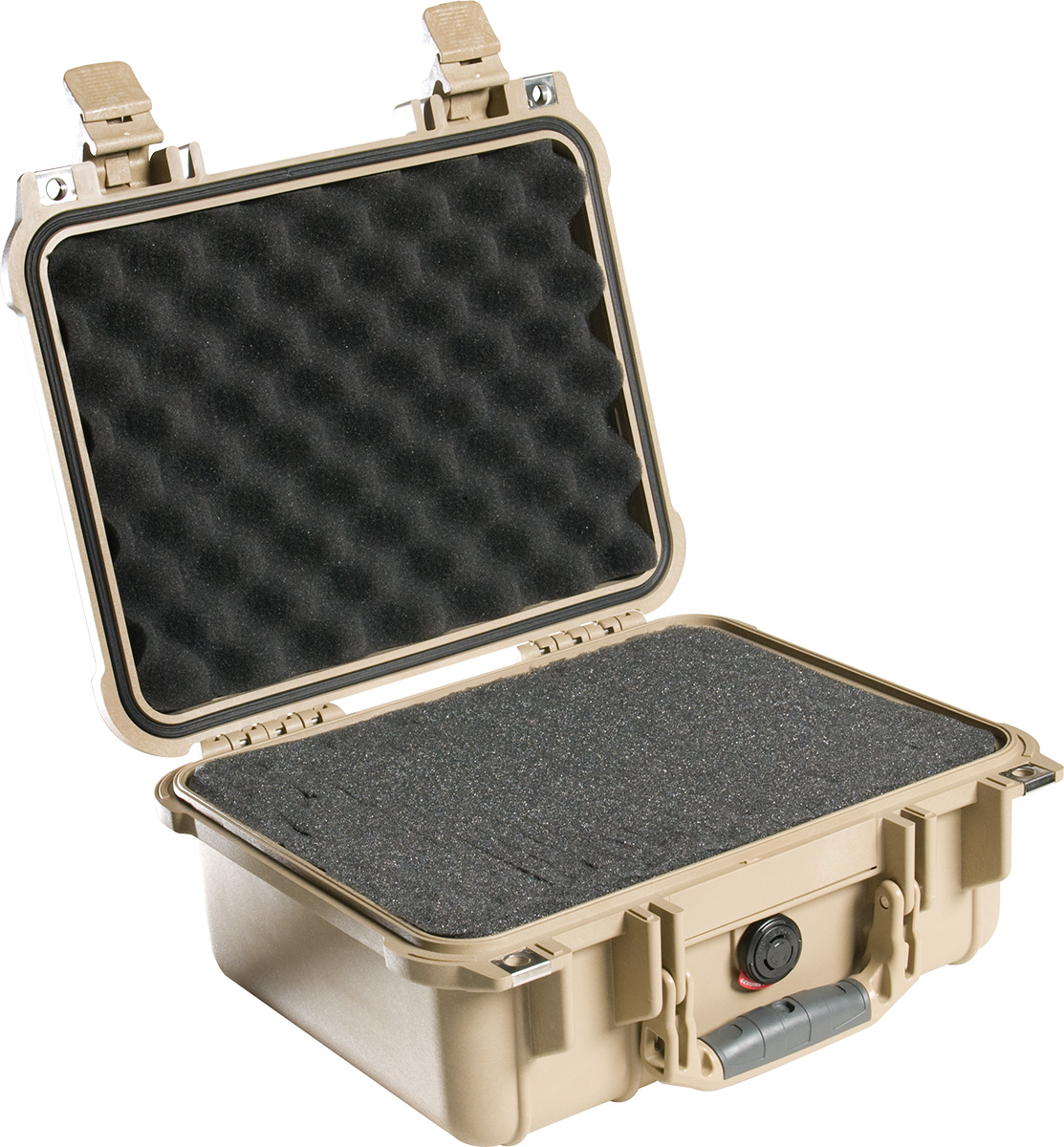

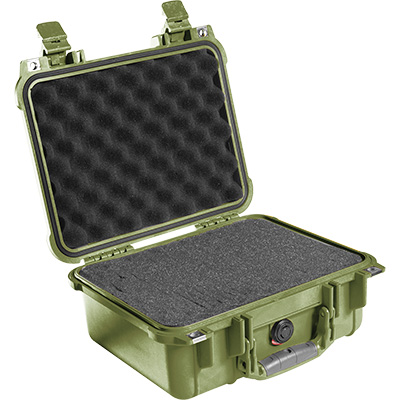

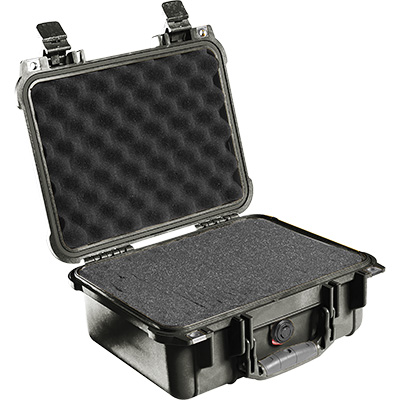

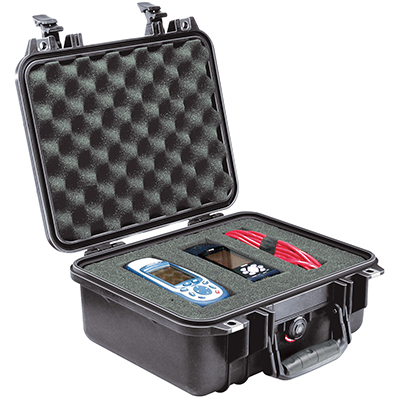

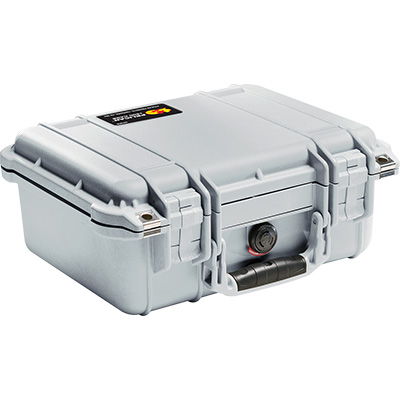

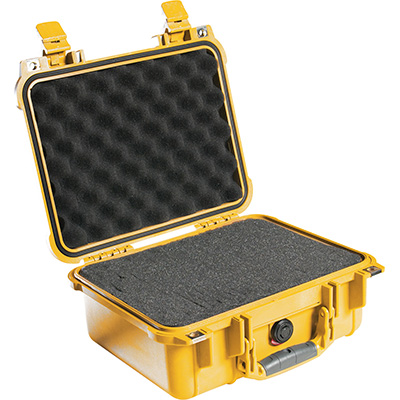

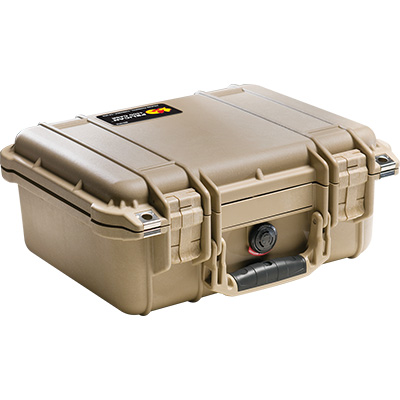

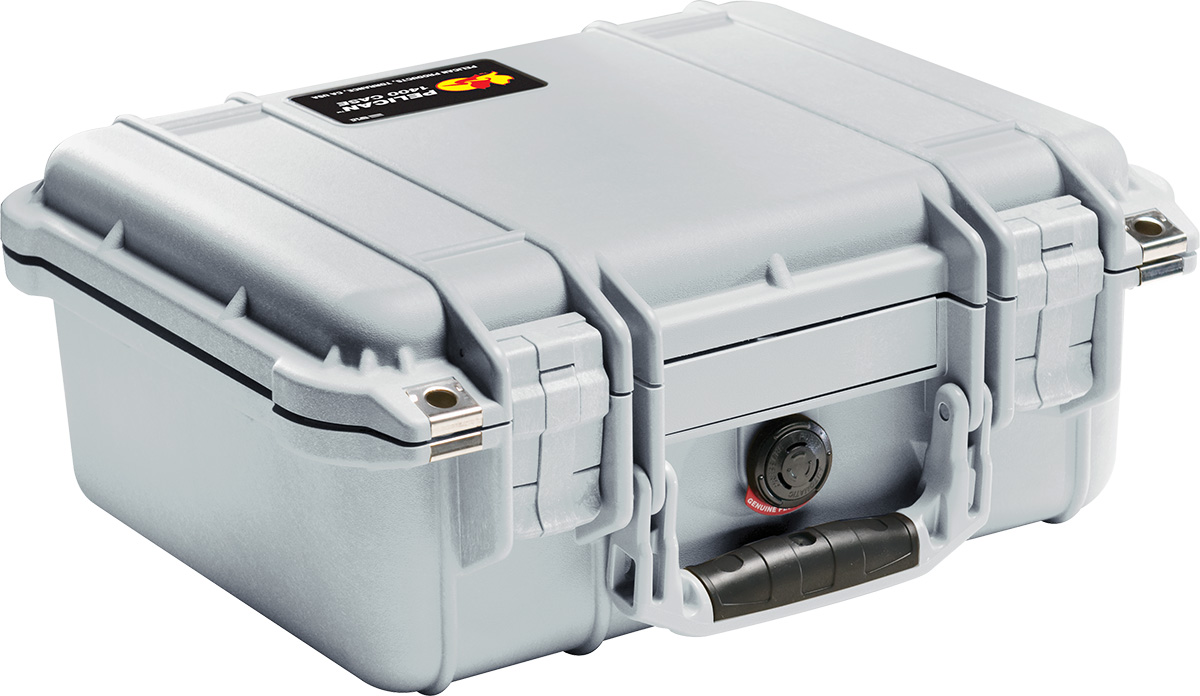

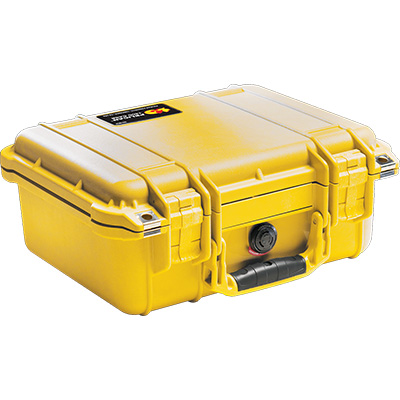

1400 Protector Case

CONFIGURATIONS

1400NF
No Foam

1400NF - No Foam

1400WF
With Foam

1400WF - With Foam

FOAM LAYERS: Layer 1 (Lid): 1.38" - Convolute / Layer 2 (Base): 0.50" - Pad / Layer 3 (Base): 3.38" - Pick N Pluck

Design your Own Foam
at pelicanfoam.com

DESCRIPTION

Pelican™ Protector Case™

Sensitive equipment needs protection, and since 1976 the answer has been the Pelican™ Protector Case. These cases are designed rugged, and travel the harshest environments on earth. Against the extreme cold of the artic or the heat of battle, Pelican cases have survived.

Made in the USA, these tough cases are designed with an automatic purge valve, that equalizes air pressure, a watertight silicone O-ring lid, over-molded rubber handles and stainless steel hardware.

Personalized nameplate service available
Watertight, crushproof, and dustproof
Automatic Pressure Equalization Valve - balances interior pressure, keeps water out
Comfortable rubber over-molded handle
Easy open Double Throw latches
O-ring seal
Open cell core with solid wall design - strong, light weight
Pick N Pluck™ with convoluted lid foam
Stainless steel hardware
Stainless steel padlock protectors
TrekPak Kit for 1400

SPECS

INTERIOR (L X W X D)
11.81" x 8.87" x 5.18" (30 x 22.5 x 13.2 cm)

EXTERIOR (L X W X D)
13.37" x 11.62" x 6.00" (34 x 29.5 x 15.2 cm)

LID DEPTH: 1.18" (3 cm)

BOTTOM DEPTH: 4.00" (10.2 cm)

TOTAL DEPTH: 5.18" (13.2 cm)

INT VOLUME: 0.31 ft³ (0.009 m³)

WEIGHT WITH FOAM: 4.41 lbs (2 kg)

WEIGHT EMPTY: 3.97 lbs (1.8 kg)

BUOYANCY: 20.06 lbs (9.1 kg)

FOAM LAYERS: Layer 1 (Lid): 1.38" - Convolute / Layer 2 (Base): 0.50" - Pad / Layer 3 (Base): 3.38" - Pick N Pluck

BODY: Polypropylene

LATCH: ABS

O-RING: Polymer

PINS: Stainless Steel

FOAM: 1.3 lb Polyurethane

PURGE BODY: ABS

PURGE VENT: 3 Micron Hydrophobic Non-Woven

MINIMUM TEMPERATURE: -40° F (-40 ° C)

MAXIMUM TEMPERATURE: 210° F (99 ° C)

SUPPORT

For warranty information, see our
Guarantee of Excellence

For additional support,
contact us here

Create Product PDF

CERTIFICATES

  DEF STAN 81-41
  1400 IP67
  MIL-STD-810G Fungus Test

ACCESSORIES

1400TPKIT
TrekPak Case Divider Kit

1400TPKIT - TrekPak Case Divider Kit

You’ve always trusted Pelican™ to protect your sensitive gear. Now with our exclusive TrekPak™ system you can kit out your case with the precision your equipment deserves. At just 7/16” (1.1 cm) thick these rigid panels form a precise grid of protection without wasting any space. The panels are held firmly in place with steel U-pins, which means you can reconfigure your TrekPak system- even in the field.

Trimming the dividers is a snap. The included double blade cutting tool makes a perfect cut every time. Together with the included bottom foam and convoluted lid foam, the TrekPak system forms a 360-degree cocoon inside your Pelican case.

Kit includes:
