All Case Shop Cases Air 1615

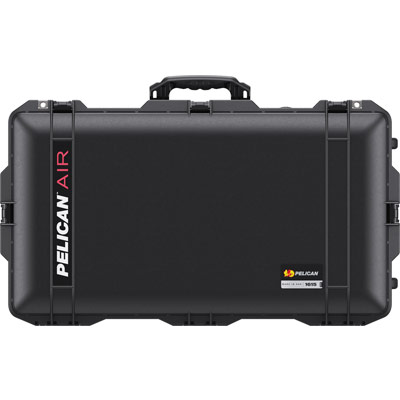

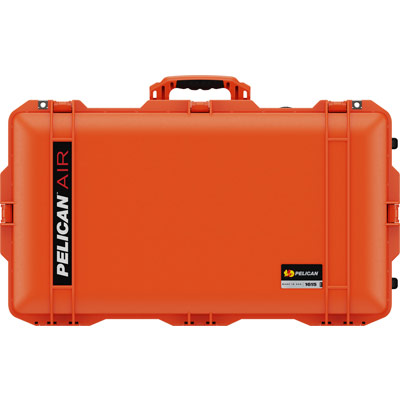

1615 Air Case
- Interior: 29.6" × 15.5" × 9.4"
- Maximum airline check-in size*
- * Check with your airline for exact measurement requirements.
- Super-light proprietary HPX²™ Polymer
- Quiet Rolling Stainless-Steel Bearing Wheels
- Business card holder

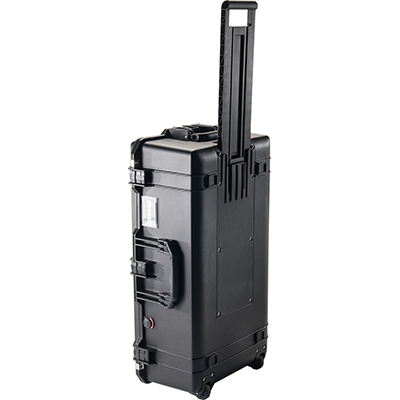

- Retractable extension handle
Select a colorLimited Edition
Select your configuration
Free Ground Shipping
See below for all configurations
Request Commercial Quote
Share
Design your Own Foam
at pelicanfoam.com
1615TPKIT
TrekPak Case Divider Kit
$186.95
1615AirDS
Padded Divider Set
$203.00
1615AirFS
7 pc. Replacement Foam Set
$141.00
1615TPDIV
Extra TrekPak Dividers
$31.95
PL2
Padlock (2 pack)
$41.00
1506TSA
TSA Lock
$17.50
1500D
Desiccant Silica Gel
$16.50

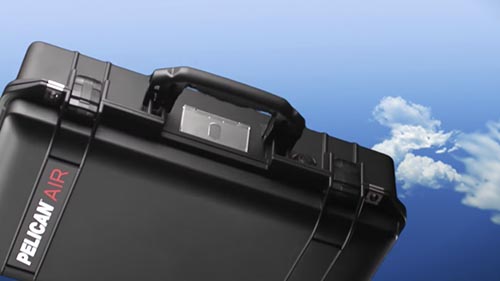

Pelican™ Air Case
Pelican™ Air cases are the first in a series of remarkable innovations engineered by Pelican, the pioneers of protective cases. For over 40 years Pelican has designed and crafted the most influential protective cases in the world, and we're just getting started.
With the launch of the Pelican™ Air line of cases, we're redefining the future of protection with a remarkable union of light and tough.
- Maximum airline check-in size*
- * Check with your airline for exact measurement requirements.
- Super-light proprietary HPX²™ Polymer
- Quiet Rolling Stainless-Steel Bearing Wheels
- Business card holder
- Retractable extension handle
- Automatic Purge Valve - Keeps water and dust out while balancing air pressure
Interior (L×W×D)
29.59 x 15.50 x 9.38 in
(75.2 x 39.4 x 23.8 cm)
(75.2 x 39.4 x 23.8 cm)
Exterior (L×W×D)
32.58 x 18.40 x 11.02 in
(82.8 x 46.7 x 28 cm)
(82.8 x 46.7 x 28 cm)
Lid Depth
2.00" (5.1 cm)
Bottom Depth
7.38" (18.7 cm)
Total Depth
9.38" (23.8 cm)
Int Volume
2.49 ft³ (0.071 m³)
Padlock Hole Diameter
5/16" (8 mm)
Weight With Foam
17.60 lbs (8 kg)
Weight Empty
14.06 lbs (6.4 kg)
Buoyancy
169.20 lbs (76.7 kg)
Wheels
2
Body Material
Proprietary Polypropylene Blend
Latch Material
ABS
O-Ring Material
EPDM
Purge Body Material
ABS
Purge Vent Material
Hi-Flow Gore-Tex 3 Micron Hydrophobic Non-Woven
Foam Layer 1 (Lid)
2.03" (5.2 cm) - Convolute
Foam Layer 2 (Base)
2.94" (7.5 cm) - Pick N Pluck (.50" x .50" squares)
Foam Layer 3 (Base)
2.94" (7.5 cm) - Pick N Pluck (.50" x .50" squares)
Foam Layer 4 (Base)
1.44" (3.7 cm) - Pad
Foam Layer 5 (Base)
0.81" (2.1 cm) - Filler
Foam Layer 6 (Base)
0.81" (2.1 cm) - Filler
Foam Layer 7 (Base)
0.81" (2.1 cm) - Filler
Minimum Temperature
-60° F (-51 ° C)
Maximum Temperature
160° F (71 ° C)
View More Specs
For warranty information, see our
Guarantee of Excellence
For additional support,
contact us here
CERTIFICATES
Certificate-Of-Test-Compliance-Dry-Heat-Case-1615Certificate-Of-Test-Compliance-Dust-IP6X-Case-1615
Certificate-Of-Test-Compliance-Immersion-IPX7-Case-1615
Certificate-Of-Test-Compliance-Low-Temp-Case-1615
Certificate-Of-Test-Compliance-Vibration-Case-1615
Test-Report-with-pictures
Certificate-Of-Test-Compliance-Vertical-Impact-Case-1615
POSTCARDS
Pelican Air
1615TP
With TrekPak Divider System
1615TP - With TrekPak Divider System
- Two perimeter pieces
- Two 16 inch dividers
- Two 30 inch dividers
- Cutting Tool
- 30 pins with 30 red pull tabs
1615WD
With Padded Dividers
1615WD - With Padded Dividers

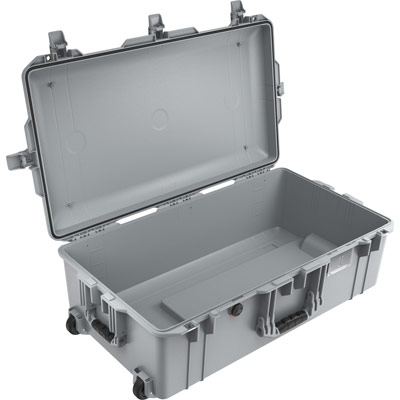

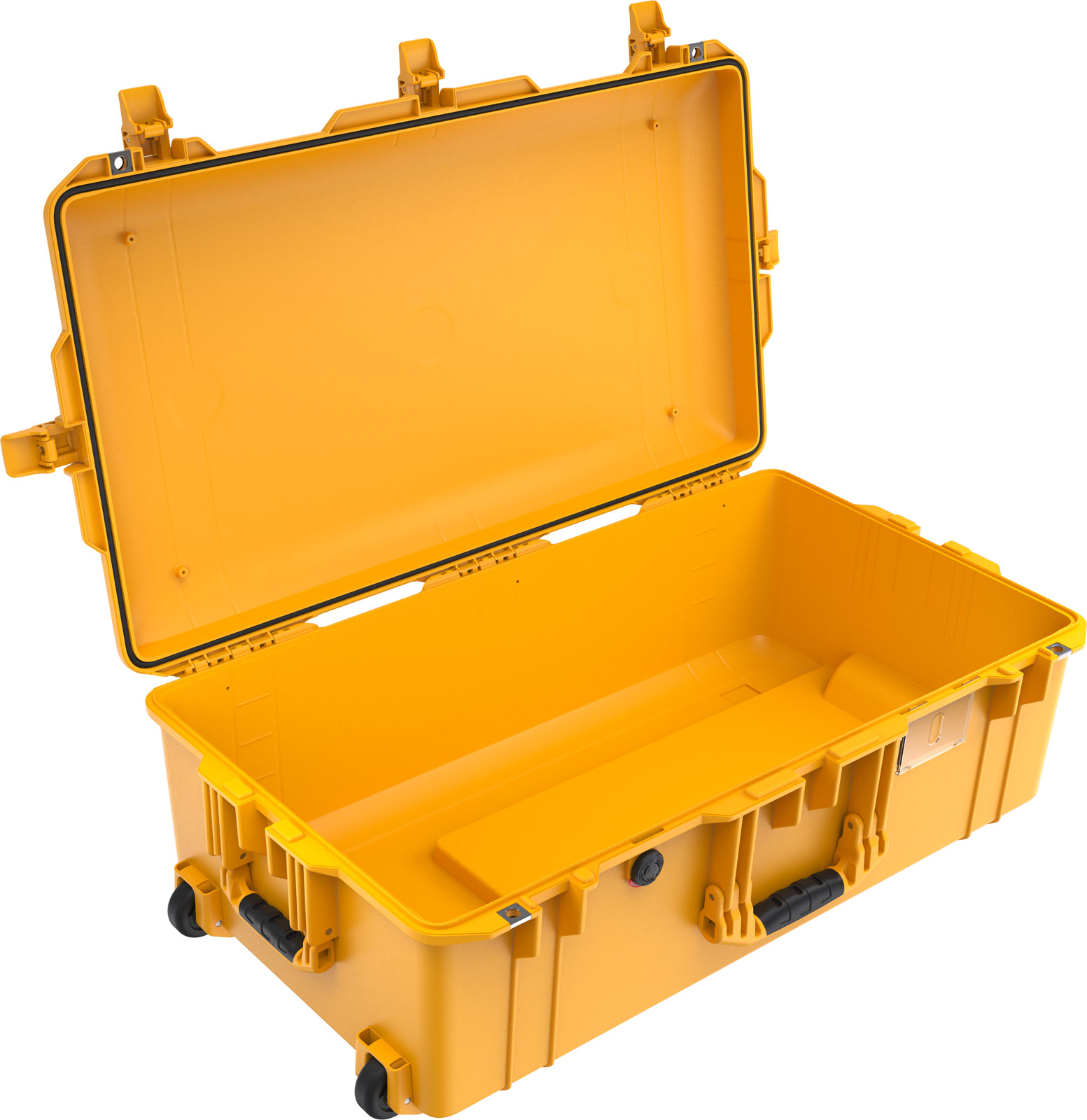

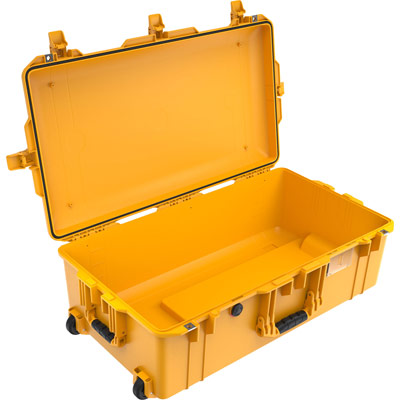

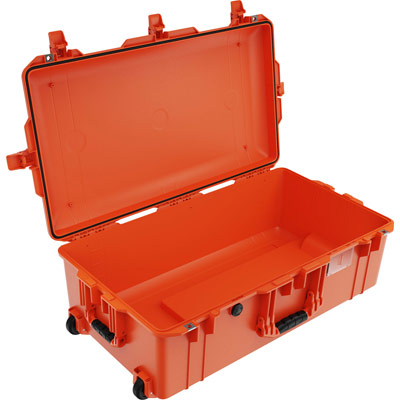

1615NF
No Foam
1615NF - No Foam

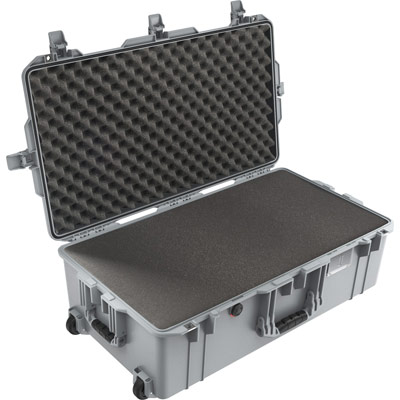

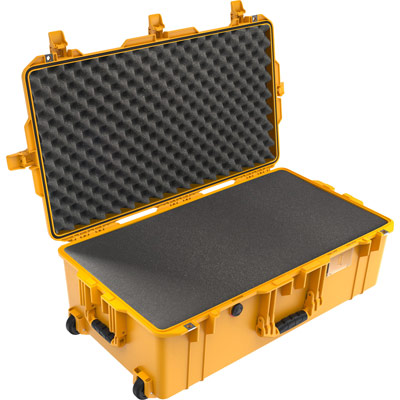

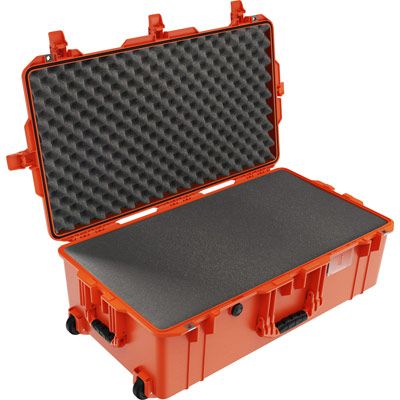

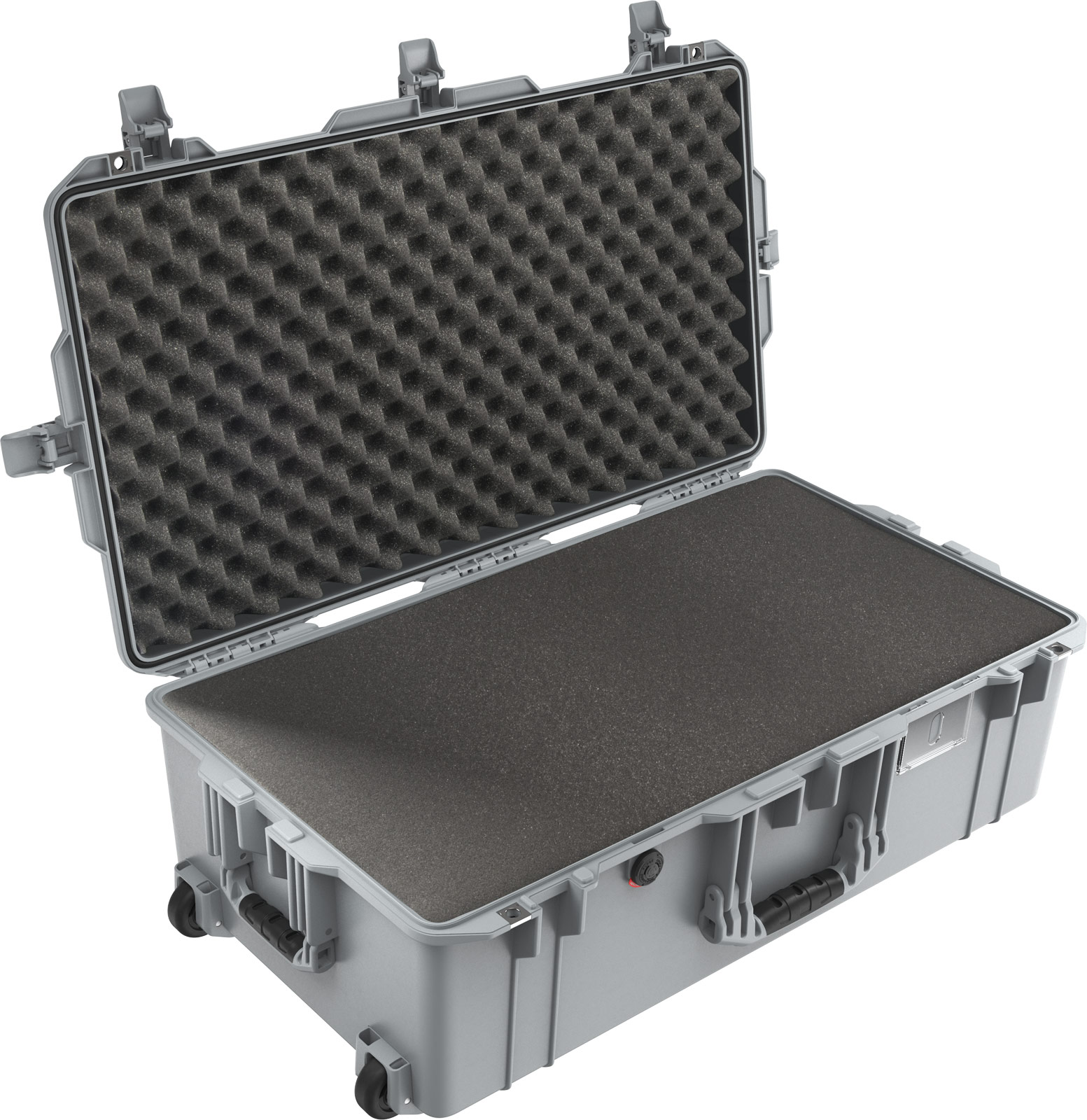

1615WF
With Foam
1615WF - With Foam
FOAM LAYERS:
Foam Layer 1 (Lid)
2.03" (5.2 cm) - Convolute
Foam Layer 2 (Base)
2.94" (7.5 cm) - Pick N Pluck (.50" x .50" squares)
Foam Layer 3 (Base)
2.94" (7.5 cm) - Pick N Pluck (.50" x .50" squares)
Foam Layer 4 (Base)
1.44" (3.7 cm) - Pad
Foam Layer 5 (Base)
0.81" (2.1 cm) - Filler
Foam Layer 6 (Base)
0.81" (2.1 cm) - Filler
Foam Layer 7 (Base)
0.81" (2.1 cm) - Filler

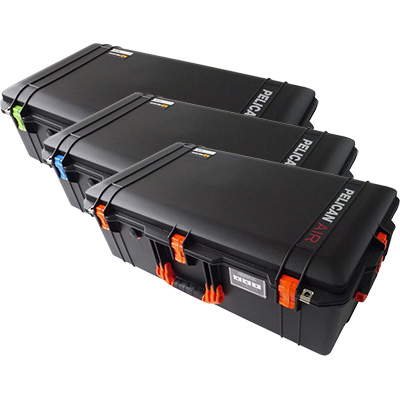

1615
Color Series
1615 - Color Series
Stand out from the crowd with special color configurations by CVPKG company. Pelican is excited to partner with CVPKG to offer distinct and unique case, handle and latch colors that still come with the same Pelican Lifetime Guarantee. Check out the entire selection and purchase at colorcase.com.
