Preconfigured Case in 7 Standard U Sizes

The BlackBox case is a textured roto molded case with a 19" wide and 24" deep EIA standard rack. It is an Off-the-Shelf product.

This lightweight, compact, and double ended case offers light duty protection and boasts significantly better light duty shock performance than the competition. The use of recycled materials in the shell and a steel frame offers great value while upholding Pelican-Hardigg's industry-leading standard.

A BlackBox case is ideal when you need immediate access to an Off-the-Shelf case and need to be cost conscious without sacrifice performance.

Not intended for high-end sensitive electronics

Made from recycled plastic materials as part of Pelican-Hardigg's commitment to reduce waste and protect the environment

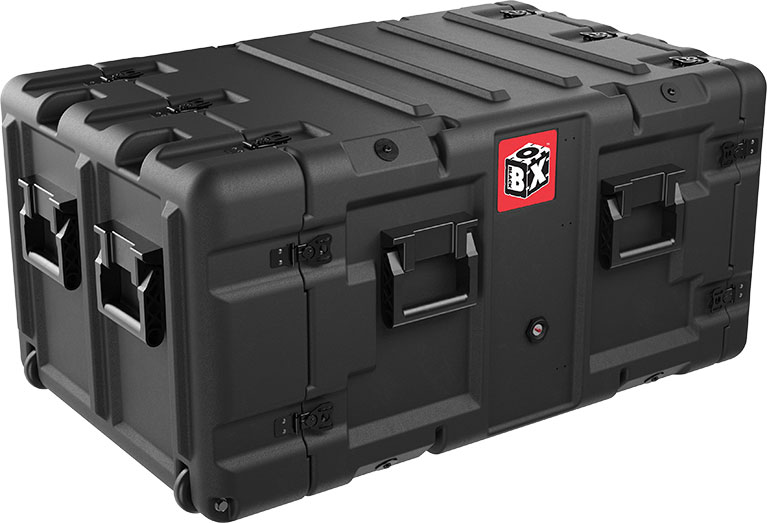

pelican blackbox light duty rack mount case

Specifications


Sizes

3U, 4U, 5U, 7U, 9U, 11U, and 14U

G-Rating

40 - 80

Payload

20 - 100 lbs.

Sway Space

1" sway space for the ability to decelerate shock

Base Features

  • » Color: Black (463)
  • » Spring Loaded Stainless Steel Black Handle (SSB)
  • » Nickel Black Non-Locking Catch-and-Strike Hardware
  • » Plastic Comfort Grip Handles
  • » Pressure Relief Valve
  • » Closed Loop Gasket
  • » Steel Rack Frame
  • » Right and Left Side Lid Hangers
  • » Mold-In Edge Casters

Shock/Vibration System

Cylindrical Shock Mounts isolate equipment from vibration as well as impact forces. Shock mounts vary in size depending on protection requirements - from delicate equipment to rugged electronics.

Applications

  • » Audio/Video Recording and Processing Systems
  • » Satellite Communication Systems
  • » Radio Communication Systems
  • » Seismic Data Recording Instrumentation
  • » Climate Data Collection
  • » Field-Deployed Amplifiers and Electronics
  • » Medical or Testing Equipment Components

Customization

BlackBox cases are an Off-the-Shelf product, in stock and ready to ship.

U Size

Rack Depth

Weight

3U

76.2 cm

20.9 kg

3U

61 cm

19.1 kg

4U

61 cm

21.3 kg

5U

61 cm

21.8 kg

5U

76.2 cm

23.6 kg

7U

61 cm

23.1 kg

7U

76.2 cm

25.4 kg

9U

61 cm

25.4 kg

9U

76.2 cm

27.7 kg

11U

61 cm

27.2 kg

14U

61 cm

29.9 kg
