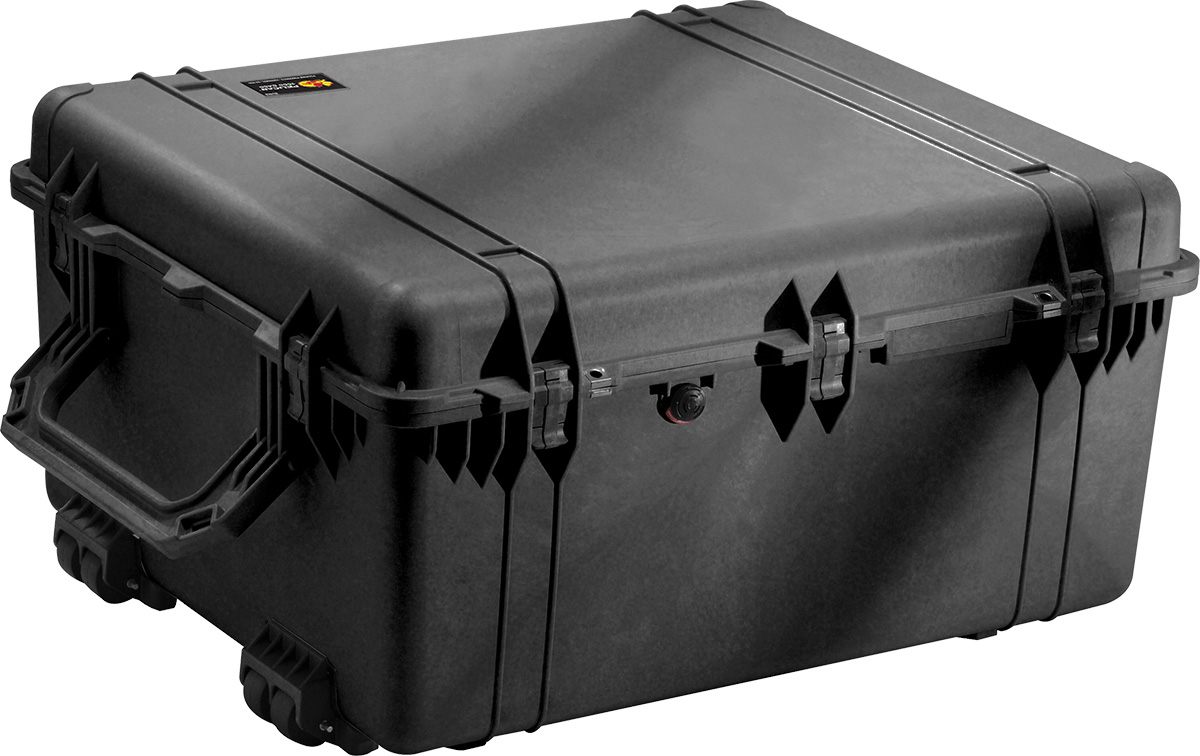

1690 Protector Transport Case

SKU: 1690-000-110

|

Interior: 30.1 × 25.1 × 15.4"

Exterior: 33.4 × 28.4 × 17.7"

made in usa

Color: Black Limited Edition

Pelican™ Protector Case™ Transport Case

Sensitive equipment needs protection, and since 1976 the answer has been the Pelican™ Protector Case. These cases are designed rugged, and travel the harshest environments on earth. Against the extreme cold of the arctic or the heat of battle, Pelican cases have survived.

Made in the USA, these tough cases are designed with an automatic purge valve, that equalizes air pressure, a watertight silicone O-ring lid, over-molded rubber handles and stainless steel hardware.

  • 4 strong polyurethane wheels with stainless steel bearings
  • Large 2-person fold down handles
  • Watertight, crushproof, and dustproof
  • Open cell core with solid wall design - strong, light weight

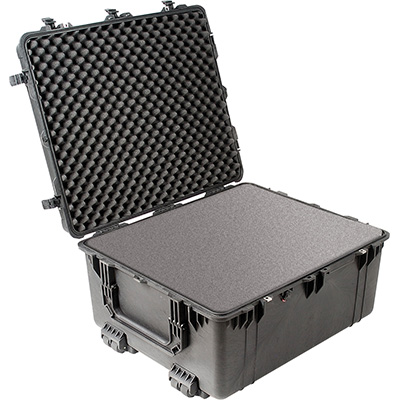

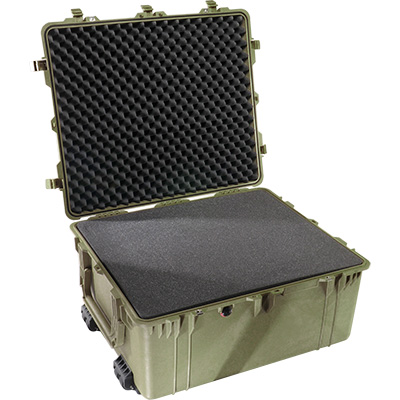

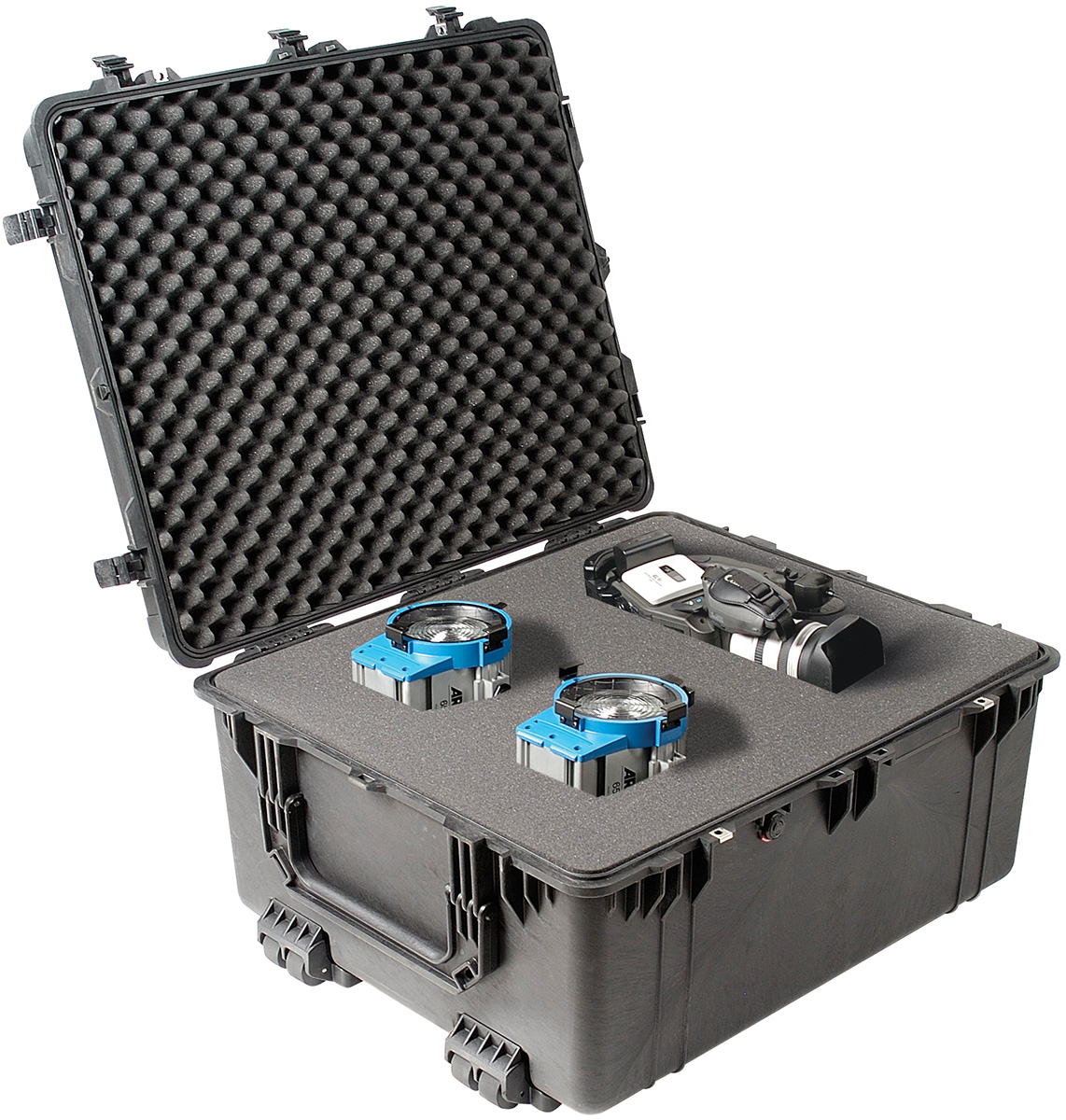

  • 3 level Pick N Pluck™ with convoluted lid foam

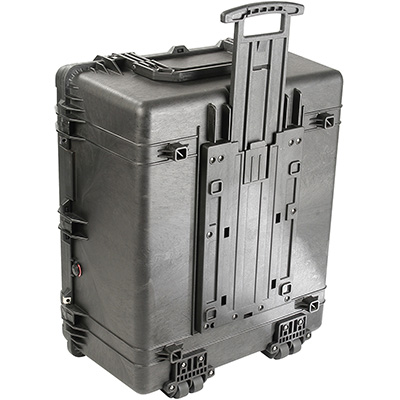

  • Retractable extension handle
  • Easy open Double Throw latches
  • Stainless steel padlock protectors
  • Automatic Pressure Equalization Valve - balances interior pressure, keeps water out
  • O-ring seal
  • Personalized nameplate service available

Dimensions

Interior (L×W×D)
30.13 x 25.13 x 15.36 in
(76.5 x 63.8 x 39 cm)
Exterior (L×W×D)
33.43 x 28.40 x 17.65 in
(84.9 x 72.1 x 44.8 cm)

Measurements

Lid Depth
2.86" (7.3 cm)
Bottom Depth
12.14" (30.8 cm)
Total Depth
15" (38.1 cm)
Int Volume
6.73 ft³ (0.191 m³)
Padlock Hole Diameter
5/16" (8 mm)

Weights

Weight With Foam
43.00 lbs (19.5 kg)
Weight Empty
34.00 lbs (15.4 kg)
Buoyancy
433.00 lbs (196.4 kg)

Materials

Body Material
Polypropylene
Latch Material
ABS
O-Ring Material
Polymer
Pins Material
Stainless Steel
Foam Material
1.3 lb Polyurethane
Purge Body Material
ABS
Purge Vent Material
3 Micron Hydrophobic Non-Woven

Temperatures

Minimum Temperature
-40° F (-40 ° C)
Maximum Temperature
210° F (99 ° C)

Others

Wheels
4
Extendable Handle
yes

Approvals

Certifications
IP67   /  STANAG 4280   /  Def Stan 81-41
