IS4517-1103 ISP Case

Colours



Shifting loose cargo can slow down your ops and threaten the mission with damaged freight. The new ISP Case from Pelican™ virtually eliminates load movement with a unique Inter-Stacking Pattern (ISP). The patent pending system is compatible across 6 different case sizes from 4 to 25 cubic feet of storage. Equipped with a silicone sponge O-ring and pressure release valves, the ISP Case is impervious to extreme weather and wet conditions.

The system is designed to maximize the volume of standard logistics platforms. Whether loading standard pallets, NATO pallets, JMIC containers, 463L pallets or sea containers, the ISP Case system will make the most efficient use of cargo space.

With its Inter-Stacking Pattern there is no question where the next case belongs. The disc pattern bottom mates with the wave pattern on the case below, literally falling and locking into place. Cross-stacking builds incredibly tight loads that can save time with strapping or netting.

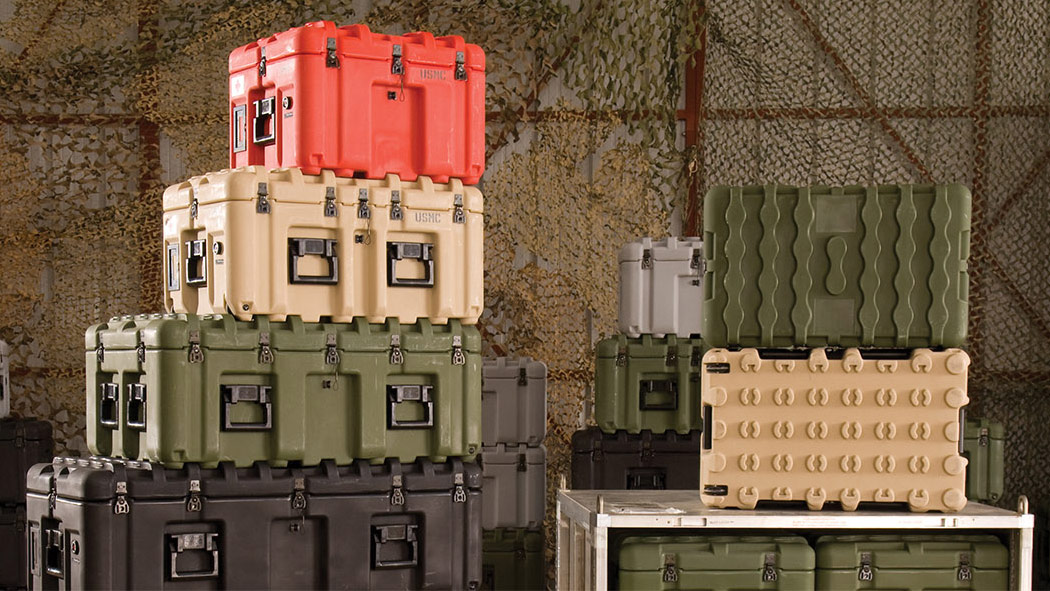

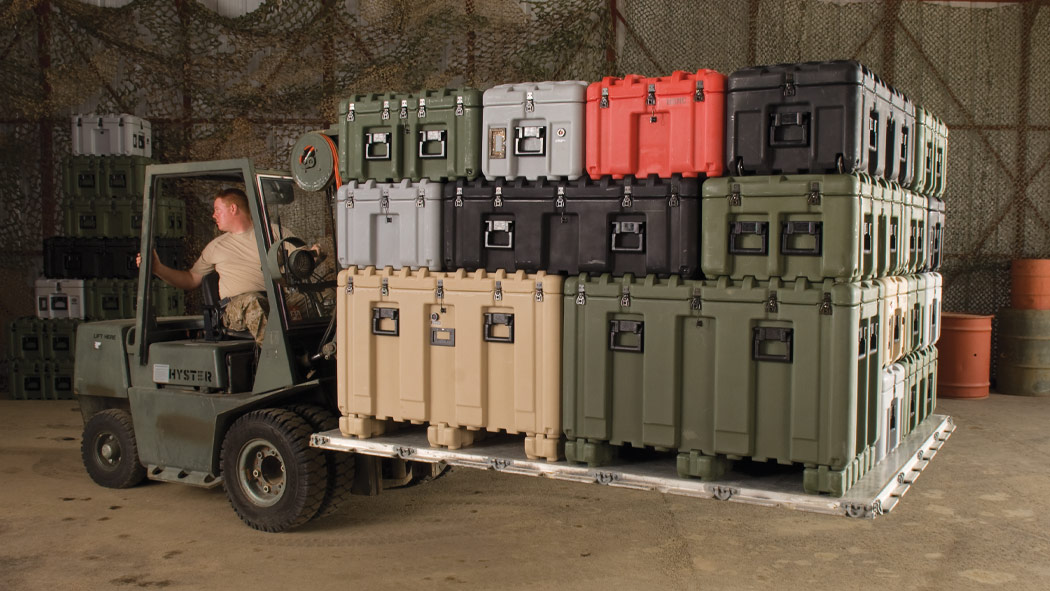

pelican interstacking pattern cases

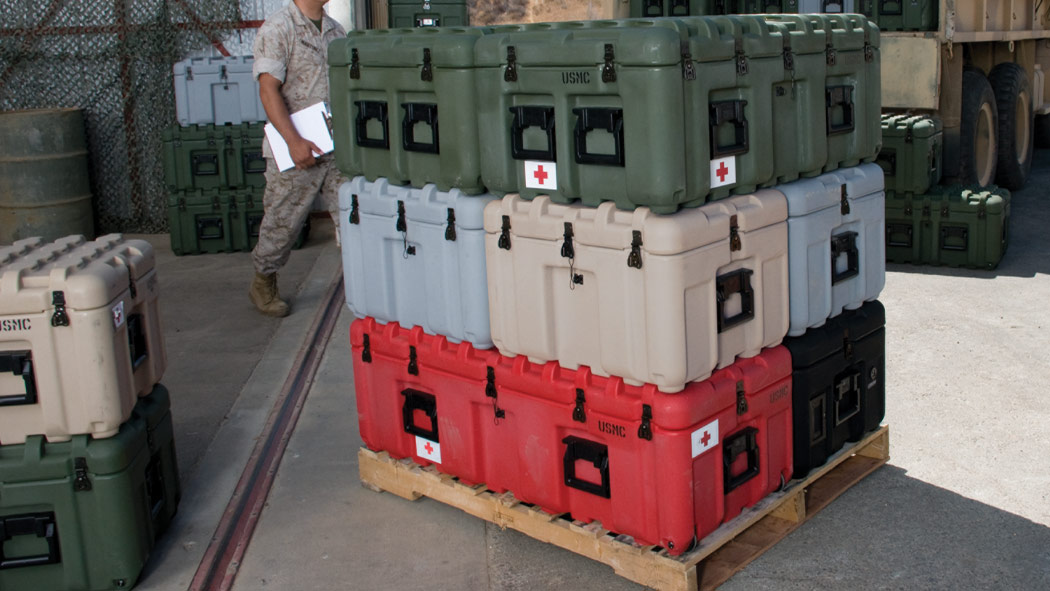

pelican isp inter stacking stackable casespelican isp stackable cases pallet

Dimensions

Interior (L×W×D)
45.00 x 17.00 x 14.00 in
(114.3 x 43.2 x 35.6 cm)
Exterior (L×W×D)
48.00 x 20.00 x 16.00 in
(121.9 x 50.8 x 40.6 cm)

Measurements

Lid Depth
3.00" (7.6 cm)
Bottom Depth
11.00" (27.9 cm)
Total Depth
14" (35.6 cm)
Int Volume
6.2 ft³ (0.176 m³)

Weights

Weight With Foam
52.00 lbs (23.6 kg)
Weight Empty
38.00 lbs (17.2 kg)

Materials

Body Material
RotoMolded Polyethylene
Latch Material
Steel (Nickel-black Plated)
O-Ring Material
Silicone Sponge
Pins Material
Stainless Steel
Pins (Alt) Material
Aluminum
Purge Body Material
Aluminum

Temperatures

Minimum Temperature
-20° F (-29 ° C)
Maximum Temperature
140° F (60 ° C)

Others

Wheels
2
Max Drag Weight
150.00

Approvals

Certifications
MIL-STD-810F
