iM2435 Storm Top Loader Case

Interior: 17.5 × 6.5 × 15.5"

Exterior: 18.6 × 9.3 × 16.5"

made in usa

Colours

Currently unavailable online

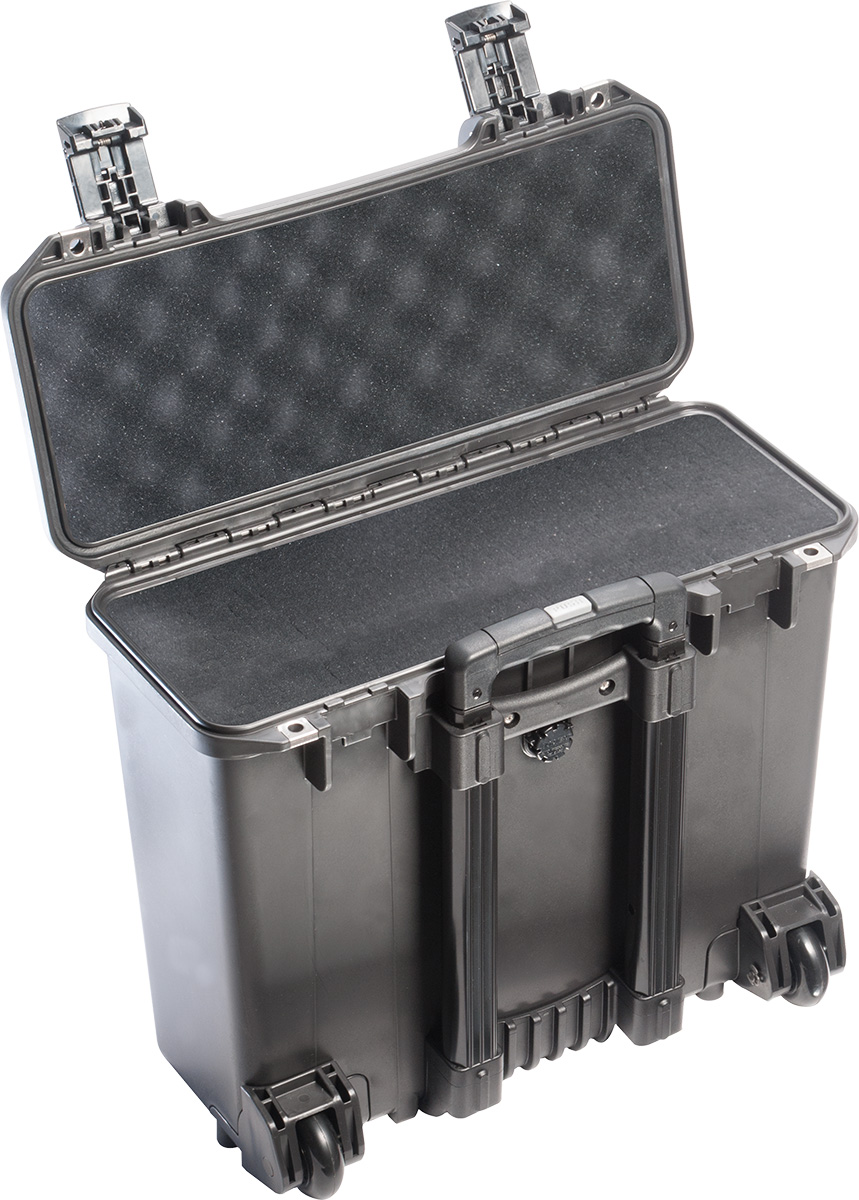

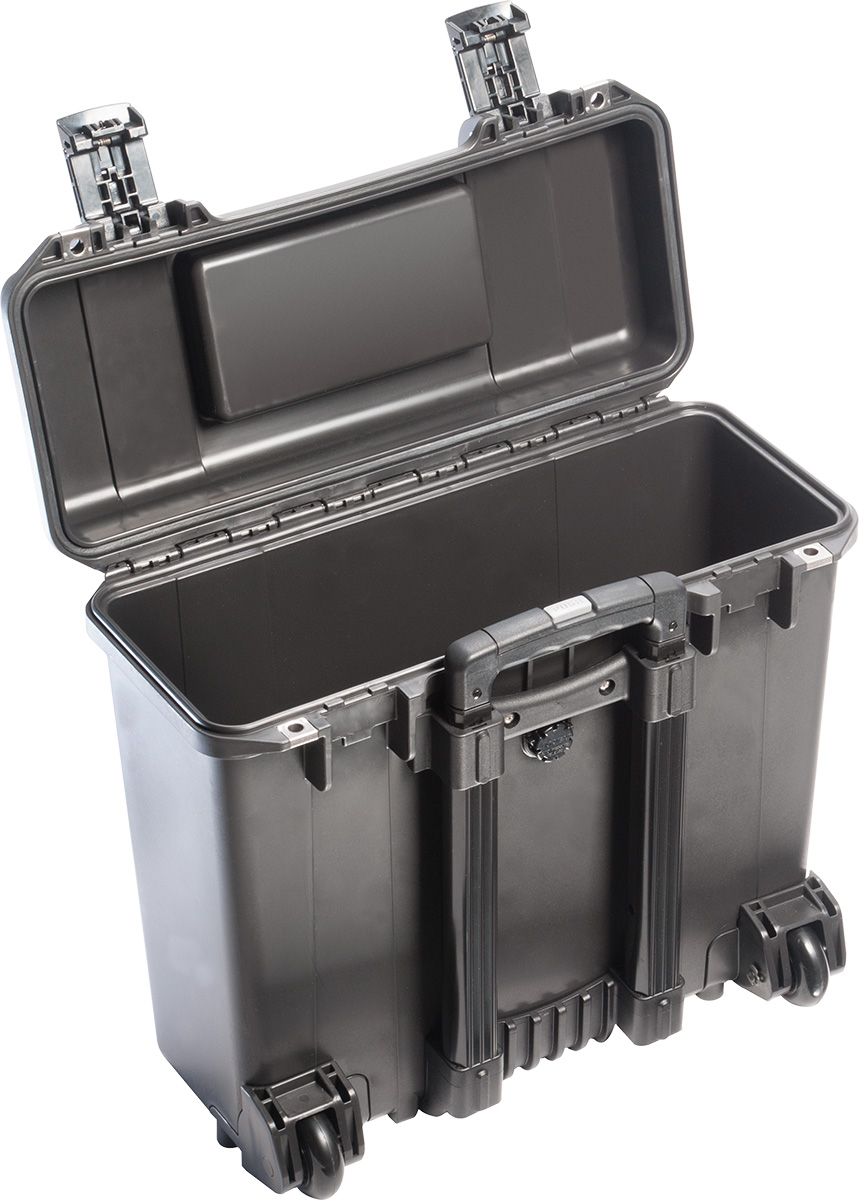

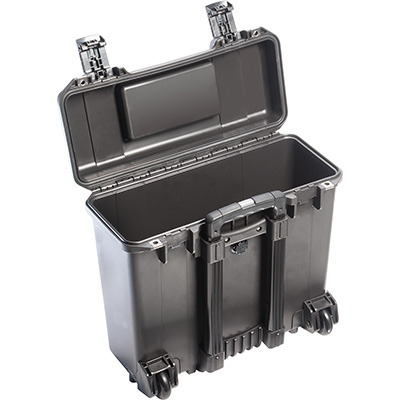

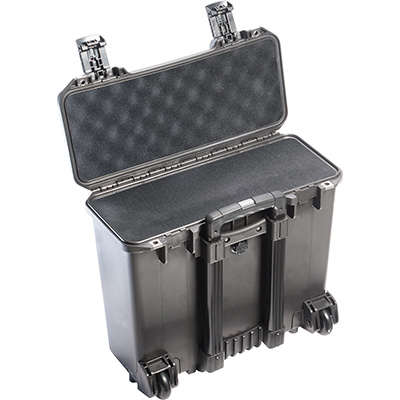

Pelican™ Storm Case™ Top Loader Case

The Pelican™ Storm Case™ has the same legendary DNA as our Pelican Protector Case, with one primary difference: A unique Press and Pull latch that locks automatically, but open with a light touch.

Guaranteed for life, the Pelican Storm case is made in the USA and engineered using the finest components.

  • Two Press & Pull Latches
  • Lightweight Strong HPX® Resin
  • Watertight, crushproof, and dustproof
  • In-line Wheels
  • Two stainless steel padlock protectors
  • Retractable extension handle
  • O-ring seal
  • Guaranteed for life

SPECIFICATIONS

Dimensions

Interior (L×W×D)
17.50 x 6.50 x 15.50 in
(44.5 x 16.5 x 39.4 cm)
Exterior (L×W×D)
18.63 x 9.25 x 16.50 in
(47.3 x 23.5 x 41.9 cm)

Measurements

Lid Depth
2.00" (5.1 cm)
Bottom Depth
13.50" (34.3 cm)
Total Depth
15.5" (39.4 cm)
Int Volume
1.02 ft³ (0.029 m³)
Padlock Hole Diameter
5/16" (8 mm)

Weights

Weight With Foam
11.15 lbs (5.1 kg)
Weight Empty
10.00 lbs (4.5 kg)
Buoyancy
56.70 lbs (25.7 kg)

Materials

Body Material
Injection Molded HPX™ high performance resin
Latch Material
Valox - Polybutylene Terephthalate (PBT)
Latch (Alt) Material
Xenoy - Polyester/Polycarbonate blend
O-Ring Material
EPDM
Pins Material
Stainless Steel
Pins (Alt) Material
Aluminum
Foam Material
1.3/1.35 polyester
Purge Body Material
Valox - Polybutylene Terephthalate (PBT)
Purge Body (Alt) Material
Xenoy - Polyester/Polycarbonate blend
Purge Vent Material
Gortex membrane

Temperatures

Minimum Temperature
-20° F (-29 ° C)
Maximum Temperature
140° F (60 ° C)

Others

Extendable Handle
yes

Approvals

Certifications
IP67
