Linear Light for Long Projects

Expand Your View

Now it’s easy to light up long stretches of rail track, tunnels and even a makeshift runway without the hassles of conventional heavyweight light towers. Chain up to 34 Pelican™ 9600 LED Modular Light heads to produce over 100,000 combined lumens of bright LED light and evenly cover more than 350 yards (321 meters), all powered by one generator.

  • Connect Multiple Light Heads from One Power Source
  • 3000 Lumens Per Light Head
  • Adjustable Light Beam
  • Stackable
  • 14 LEDs Per Light Head

Pelican™ 9600 LED Modular Light
illuminates a clean, seamless beam spread.

pelican 9600 competitive led light comparison

Competitive lights produce an uneven beam spread.

Multiple Ways to Light Up a Work Site

Where there’s a will there’s light. Engineered with side/end bracket mount receptors and four strap attachment points, plus a stand system that can extend up to 10 feet (3 meters), the Pelican™ 9600 LED Modular Light is ready to mount to fences, hang overhead or stand on its own (stand system-poles, bases and cables sold separately).

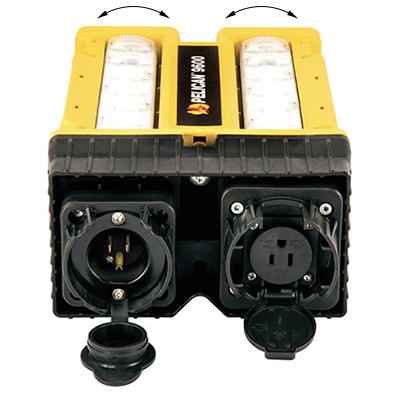

pelican 9600 remote led lights

LEDs tilt 15° each way to adjust light wherever you need it

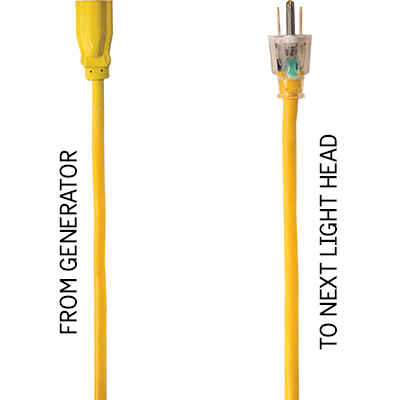

pelican 9600 remote area light power cable

46 ft cables connect via daisy chain, between each LED head

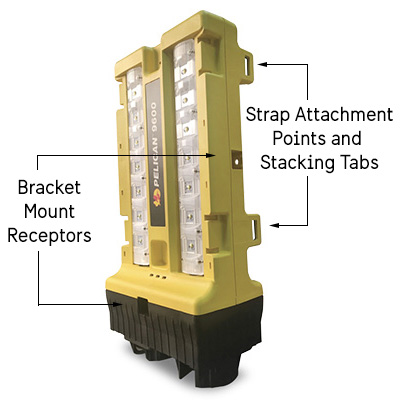

pelican 9600 modular led strap bracket

Mountable and stackable

Travel Safe and Pack Tight

Built with tough polycarbonate recessed lenses and internal shock supports, the Pelican™ 9600 Modular Light is built to survive rough terrain and accidental drops. In fact these units are drop tested from 6 feet (1.83 m) onto concrete, proof that this design is built to take punishment. Plus, the Pelican™ 9600 LED Modular Light heads and bases are designed to stack and stay together, with detachable cords and poles for compact shipping and storage.

pelican 9600 remote area light - extended

PELICAN™ 9600 LED Modular Light
Specifications

Light Output 3,000 lumens per light head
Head 18.31 x 8.27 x 4.72" (46.5 x 21 x 12 cm)
Number of LEDS 14 LEDs per light head
Beam Spread 24W per light head
Weight 7.94 lbs (3.6 kg) without bracket /
9.04 lbs (4.1 kg) with bracket
IP Rating IP 54
Total Height Assembled, Min/Max 92" (234 cm) / 121.5" (309 cm)
Maximum Load 16A
Colors

PELICAN™ 9600 LED Modular Light
Components

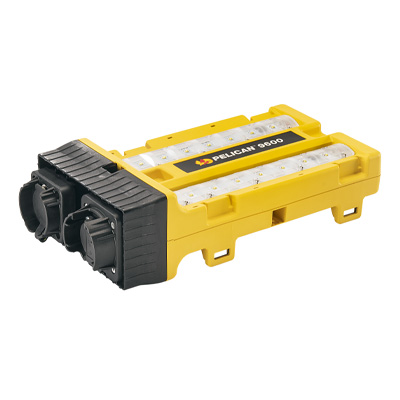

pelican 9600 remoate area modular led light

9600 LED Light

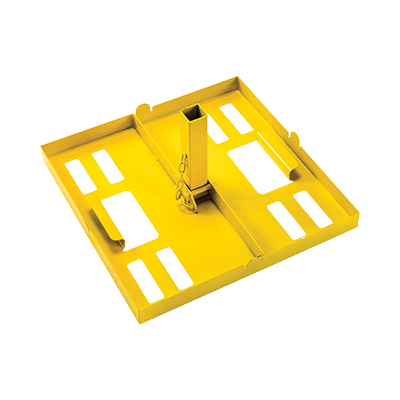

pelican 9600 led light steel light base

Steel Light Base

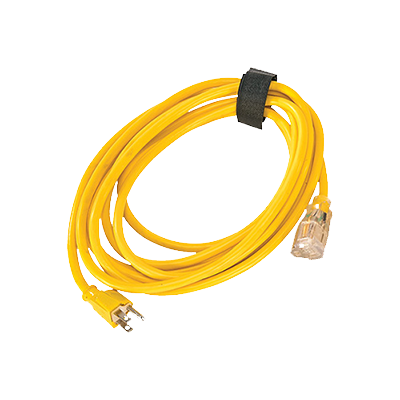

pelican 9600 modular light cable

Cable

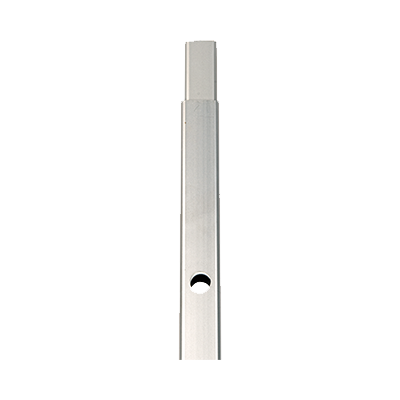

pelican 9600 remote area light pole

Aluminum Pole

pelican 9600 led daisy chain led lights
