9440 Remote Area Light

made in usa

Colours

Shop at pelicanstore.com.au
Pelicanstore.com.au is Pelican Products Australia's official online store.
If you would like to complete a purchase, please click the link above.

NOW TWICE AS BRIGHT

The 9440 now offers three pre-set power levels, battery level indication and comes equipped with a lithium ion rechargeable battery. The 9440 moves fast to light up ravines, confined spaces, riverbanks, anyplace generator lights can't go. Deployed, the mast extends 7 feet (2.1 meters) high, shining light over low obstructions encountered by traditional lantern style lights. With a 125 degree beam spread and up to 5300 lumens, your entire work area will have the light you need for a safe and efficient operation. The 9440 is able to run directly from wall power if needed and can be left on charge indefinitely which makes for an invaluable emergency preparedness tool.

The 9440 is maintenance free, using super tough LED lamp modules and a lithium ion battery for up to 8 hours of continuous light.

Adjustable carrying strap included.

  • Up to 5300 lumens
  • Up to 8 hours run time
  • Mast extends 7 feet (2.1 meters) high when deployed
  • Convenient shoulder strap
  • Equipped with a lithium ion rechargeable battery
  • Built Pelican tough
  • RoHS and CE Compliant

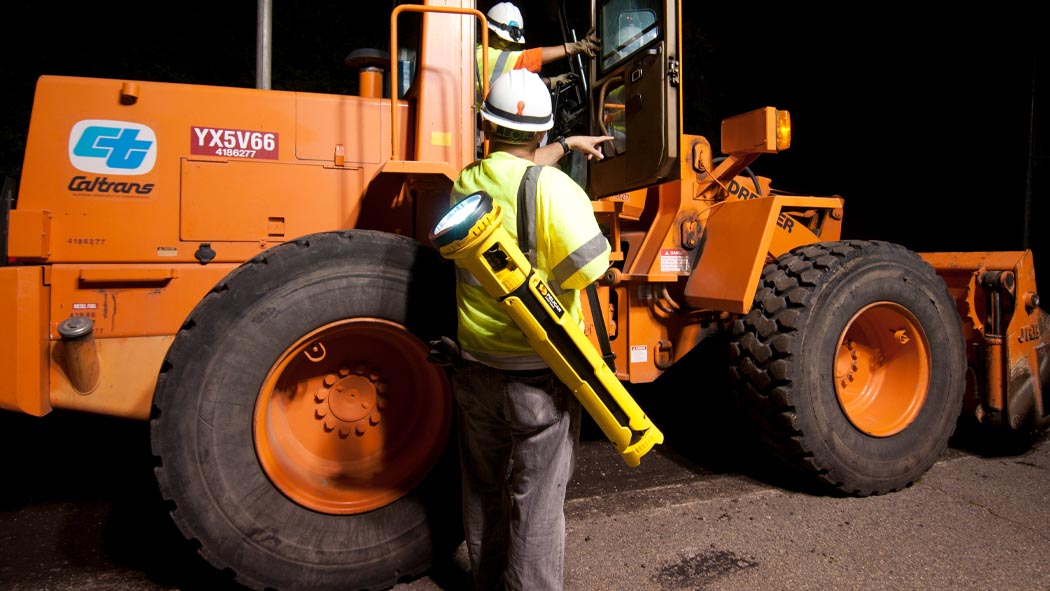

pelican 9440 strap portable rals light

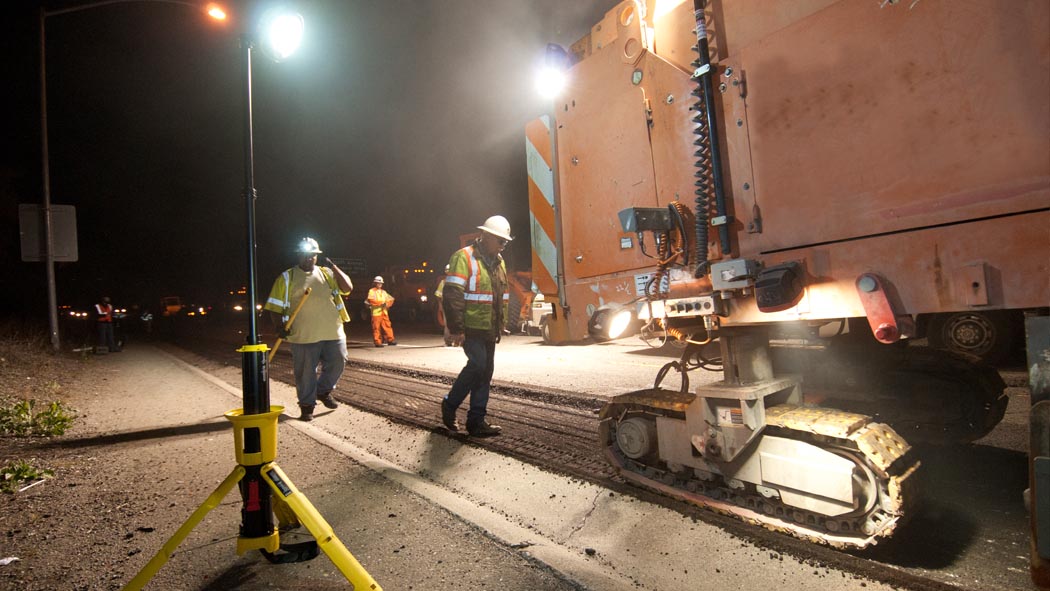

pelican 9440 remote area led light

REPLACEMENT PARTS


Part number Description Generation
009433-2065-000 SCREW,3x 8lg POZI FLANGE HD CR3 (POLY 30 2
009433-2100-000 SCREW,4x16lg POZI PAN HD(POLYMATE 30)CR3 2
009433-2102-000 M3 NYLOC NUT 2
009433-2319-000 9440 POLE RIVET 3.2MM X 12MM STEEL & AL 2
009433-2518-000 NUT,M16 CABLE GLAND,PA-GF BLK (EPN35/M16 2
009443-2035-000 FERRITE,POWER CABLE(WURTH 74271112)9440B 2
009443-2036-000 FERRTE,SWTCH CABLE(WURTH 74271111S)9440B 2
009443-2433-000 LEG STRUT ROD,9440/9440B 2
009443-2434-000 9440/9445 LEG PIVOT PIN 2
009443-2435-000 9440/9445 LEG SPRING 2
009443-2437-000 9440/9445 STRAP PIN 2
009443-2441-000 M4 NYLOC TORQUE NUT A2 2
009443-2442-000 9440/9445 STAR WASHER A2 2
009443-2443-000 WASHER, M4 CR3,9440B 2
009443-2444-000 SCREW,M4x16lg POZI PAN HEAD A2 SST,9440B 2
009443-2445-000 SCRW,4x25lg POZI FLANGE HD CR3 (PLASTITE 2
009443-2447-000 SCRW,2.5x8lg PAN HD,ZINC BK,PLAS30,9440B 2
009443-2448-000 SCREW, M3 x 8lg POZI PAN HD A2 SST,9440B 2
009443-2449-000 BEZEL GASKET,9440B 2
009443-2451-000 MACHINE SCREW,M3 x 5MM PHIL PAN A2,9440B 2
009443-2455-000 PCB MOUNT,9440/9440B 2
009443-2456-000 COILED CABLE,9440B 2
009443-2461-000 CABLE GLAND, M16 BLACK,9440/9440B 2
009443-2462-000 WASHER, M3 A2 SST,9440B 2
009443-2463-000 WASHER, M6 A2 SST FORM G,9440B 2
009443-2466-000 BOLT, M6 X 40lg SOCKET CAP A2 SST,9440B 2
009443-2467-000 NUT, M6 NYLOC A2 SST,9440B 2
009443-2468-000 BOLT, M6 X 16lg SOCKET CAP A2 SST 2
009443-2469-000 PLUG,NYLON,BK 22.6 diax6.4 hI,9440/9440B 2
009443-2477-000 HOSE CLAMP,NYLON,BK(HERBIE-R)9440/9440B 2
009443-2478-000 HERBIE CLIP SIZE A BLACK,9440/9440B 2
009443-2480-000 CABLE TIE,200MM X 2.5MM BLACK 2
009443-2482-000 WORM DRIVE CLAMP 32-44mm,9440/9440B 2
009443-2483-000 CABLE TIE,0.186" x 8",NYLON,BLK,9440B 2
009443-2484-000 CHARGING CONNECTOR COVER DISC,9440B 2
009443-2921-000 REFLECTOR 12 LED,9440B 2
009443-3355-000 CONTROL/CHARGER PCB,9440B 2
094400-3429-000 BATTERY PACK,LI-ION,9440B,RAW,GEN2 2
009443-3439-000 M12 VENT IP67 12SEC/100CM3 - BLACK 2
009443-3448-000 CHARGER/BATT WIRING LOOM,9440B 2
009443-3454-000 HEATSINK,LIGHT HEAD,9440B 2
009443-4100-000 FOAM,BATT.PACK,size PLAIN PAD 2
009443-4323-000 BATTERY PACKING BLOCK,9440B 2
009443-4324-000 BATTERY LID PACKING BLOCK,9440B 2
009443-4387-000 LIGHT HEAD FOAM,9440B 2
009443-4400-000 DBLE SIDED STICKY PAD,35mm x 20mm,9440B 2
009443-4500-000 FOAM PROTECTOR,CHARGER PCB SELF ADHESIVE 2
009443-5472-001 USER MANUAL,9440B,PELICAN,US 2
009443-5474-000 LEG STICKER,PELICAN,9440/9440B 2
009443-5476-000 CARTON,9440/9445,PLAIN KRAFT 2
009443-5477-000 OPERATIONS STICKR,SERIALIZED,9440/9440B 2
009443-5478-000 CURVED CAUTION LABEL x 1,9440/9440B 2
009443-5480-000 9440 BOX HEAD INSERT 2
009443-5481-000 9440 CHARGER BOX INSERT 2
009443-5482-000 OPERATIONS STICKER,9440/9440B 2
009443-5483-000 DECAL,9440B,LIGHTHEAD,PELICAN 2
009443-5484-000 POWER LEVEL DECAL,9440B,LEG 2
009443-6428-110 BATTERY COMPARTMENT LID,BLACK,9440B 2
009443-6458-110 SWITCH HOUSING,BLACK,9440B 2
009443-6459-110 TELESCOPIC TUBE PACKING BLOCK,9440B 2
009443-7429-001 BATTERY CAP GASKET,9440B 2
009443-7441-000 O-RING,79.5mm x 2mm,9440B 2
009443-7464-000 O-RING 25.5mm x 3mm,9440/9440B 2
009443-7469-000 O-RING 33 x 2mm,9440/9440B 2
009443-7483-000 LENS GASKET,9440/9440B 2
009483-9441-000 9440/9445 SHOULDER STRAP 2
009443-9455-000 KEYPAD CABLE,9440B 2
009443-9456-110 KEYPAD BEZEL,9440B,SWITCH HOUSING,BLACK 2
009443-9457-001 KEYPAD,9440B 2
009446-3453-000 LIGHT ENGINE ASSEMBLY,9440B 2
009446-6424-000 THREE SEC.TELESCOPIC POLE ASY,9440/9440B 2
009446-6425-000 9440/9445 BODY EXTRUSION 2
009446-6426-110 9440 BATTERY COMPARTMENT,BLACK+ 2
009446-6432-110 9440 LEG, BLACK+ 2
009446-6436-170 9440 RELEASE LATCH,RED 2
009446-6458-110 UPPER TELESCOPIC TUBE CAP,BLK,9440/9440B 2
009446-6460-110 LOWER TELESCOPIC TUBE CAP,BLK,9440/9440B 2
009446-6500-110 LAMP HEAD BOTTOM,BLACK,9440/9440B 2
009446-6501-110 9440 LAMP HEAD FRONT, BLACK 2
009446-6502-110 LAMP HEAD PIVOT,BLACK,9440/9440B 2
009446-6503-110 UPPER COLLAR,BLACK,9440/9440B 2
009483-0303-000 COMPLETE POWER SUPPLY ASSY,9440B/9480/9490 US 2
009483-3048-000 SOURIAU SEAL CAP,9480(UTL10DCG) 2
009503-2413-000 SCREW,#8 x 1" POZI PAN HD DELTACOLL BLK 2
1903-321-000 O-RING,1900,LENS(2130 & 1930 only by Oct 2
2003-343-000 PUV,2000,CHECK VALVE,BLK 2
2003-942-110 COVER,PUV,ABS-BLACK 2
2105-551-024 MSTR,2100,24-PK.CARTON-KRAFT+ 2
7063-368-000 (*)LABEL,"LI-ION" WARNING,BATTERY 2
009446-2481-000 POLE + FIXINGS Kit,9440 2
009446-6043-110 MOLDINGS + EXTRUSION Kit,9440,BLACK 2
009446-6043-245 MOLDINGS + EXTRUSION Kit,9440,YELLOW 2
009446-6430-110 Lower Collar, black, 9440 2
009446-6433-110 LEGS Kit,9440,BLACK 2
009446-6433-245 LEGS Kit,9440,YELLOW 2
009446-6437-170 LATCH + FIXINGS Kit,9440,Red 2
009446-6504-100 LAMP HEAD WINDOW,CLEAR,9440/9440B 2
009483-0303-000E COMPLETE POWER SUPPLY ASSY,9440B/9480/9490 EU 2
009443-3105-000 Intl Wall Charger Plugs (4-set) Kit,9435/9440 1
009446-2480-000 CONNECTOR COVER,9440 1
009446-2481-000 POLE + FIXINGS Kit,9440 1
009446-3049-000 PCB + FIXINGS Kit,9440 1
009446-3429-000 BATTERY PACK,9440 1
009446-3446-000 CHARGER w/4 INTL.FACE PLATES, 9440 1
009446-3450-000 WIRING KIT,9440 1
009446-6043-110 MOLDINGS + EXTRUSION Kit,9440,BLACK 1
009446-6043-245 MOLDINGS + EXTRUSION Kit,9440,YELLOW 1
009446-6430-110 Lower Collar, black, 9440 1
009446-6433-110 LEGS Kit,9440,BLACK 1
009446-6433-245 LEGS Kit,9440,YELLOW 1
009446-6437-170 LATCH + FIXINGS Kit,9440,Red 1
009446-6457-110 SWITCH HOUSING Kit,9440,BLACK 1
009446-6457-245 SWITCH HOUSING Kit,9440,YELLOW 1
009446-6504-100 LAMP HEAD WINDOW,CLEAR,9440/9440B 1
009446-6504-110 LIGHT HEAD Kit,9440,BLACK 1
009446-6504-245 LIGHT HEAD Kit,9440,YELLOW 1
009446-9447-000 STRAP, 9440 1

Dimensions

Head (L×W×D)
20 x 20 x 8.9 cm
Closed (L×W×D)
95 x 20 x 20 cm
Full (L×W×D)
215.9 x 91 x 91 cm

Measurements

Light Head Height (max)
215.9 cm

Weights

Weight
7.3 kg

Materials

Body Material
Polypropylene
Head Material
Polycarbonate (PC) / ABS
Mast Material
Aluminum
Lens Material
Polycarbonate (PC)
