1630 Protector Transport Case
OVERVIEW
Pelican™ Protector Case™ Transport Case
Sensitive equipment needs protection, and since 1976 the answer has been the Pelican™ Protector Case. These cases are designed rugged, and travel the harshest environments on earth. Against the extreme cold of the arctic or the heat of battle, Pelican cases have survived.
Made in the USA, these tough cases are designed with an automatic purge valve, that equalizes air pressure, a watertight silicone O-ring lid, over-molded rubber handles and stainless steel hardware.
Configurations:
1630 Protector Transport Case
The With Padded Dividers (1634) configuration includes:
- 1630 Protector Transport Case
- Padded Dividers
1630 Protector Transport Case
The No Foam (1630NF) configuration includes:
- 1630 Protector Transport Case
1630 Protector Transport Case

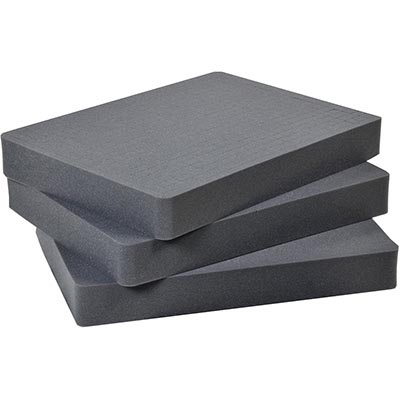

The With Foam (1630WF) configuration includes:
- 1630 Protector Transport Case
- Foam Layers
- Foam Layer 1 (Lid) - 3.20" (8.1 cm) Convolute
- Foam Layer 2 (Base) - 3.75" (9.5 cm) Pick N Pluck (1.0" x 1.0" squares)
- Foam Layer 3 (Base) - 3.75" (9.5 cm) Pick N Pluck (1.0" x 1.0" squares)
- Foam Layer 4 (Base) - 3.75" (9.5 cm) Pick N Pluck (1.0" x 1.0" squares)
- Foam Layer 5 (Base) - 1.00" (2.5 cm) Solid
- 4 strong polyurethane wheels with stainless steel bearings (wheel diameter is 5.3cm)
- Stackable
- Watertight, crushproof, and dustproof
- Reinforced corners
- Open cell core with solid wall design - strong, light weight
- Retractable extension trolley handle
- 3 level Pick N Pluck™ with convoluted lid foam
- Easy open double-throw latches
- Fold down handles
- Stainless steel padlock protectors
- Automatic pressure equalization valve - balances interior pressure, keeps water out
- O-ring seal
- Note: Please consult a sales specialist for more details.
- Personalized nameplate service available
- Lifetime Guarantee of Excellence
ACCESSORIES
YOU MAY ALSO LIKE
SPECS
DIMENSIONS
Interior (L×W×D)
27.70 x 20.98 x 15.50 in
(70.4 x 53.3 x 39.4 cm)
(70.4 x 53.3 x 39.4 cm)
Exterior (L×W×D)
31.28 x 24.21 x 17.48 in
(79.5 x 61.5 x 44.4 cm)
(79.5 x 61.5 x 44.4 cm)
MEASUREMENTS
Lid Depth
3.25" (8.3 cm)
Bottom Depth
12.14" (30.8 cm)
Total Depth
15.39" (39.1 cm)
Int Volume
5.21 ft³ (0.148 m³)
Padlock Hole Diameter
0.31" (0.8 cm)
WEIGHTS
Weight With Foam
36.00 lbs (16.3 kg)
Weight Empty
31.00 lbs (14.1 kg)
Buoyancy
350.00 lbs (158.8 kg)
MATERIALS
Body Material
Polypropylene
Latch Material
ABS
O-Ring Material
Polymer
Pins Material
Stainless Steel
Foam Material
1.3 lb Polyurethane
Purge Body Material
ABS
Purge Vent Material
3 Micron Hydrophobic Non-Woven
TEMPERATURES
Minimum Temperature
-40° F (-40 ° C)
Maximum Temperature
210° F (99 ° C)
OTHERS
Wheels
4
Extendable Handle
yes
APPROVALS
Certifications
IP67 / Def Stan 81-41
